LGE-86UH5C-B-00
MPN: 86UH5C-B

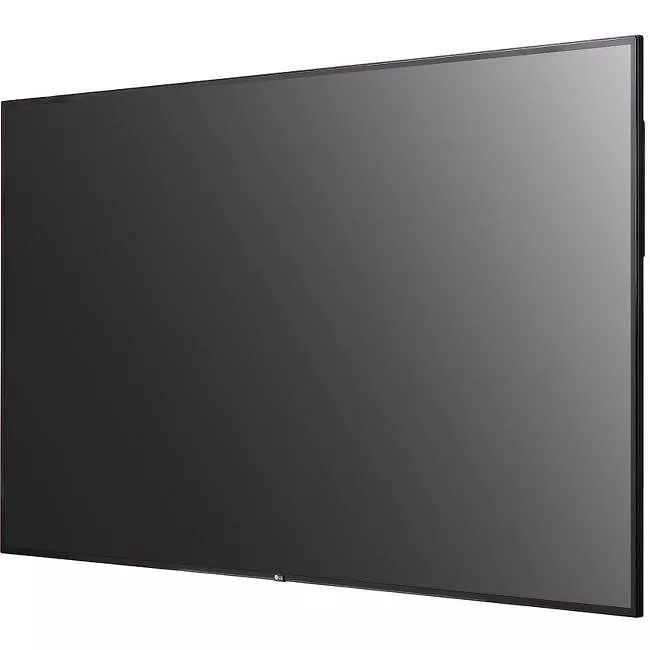

LG 86UH5C-B 86" Ultra HD Digital Signage Display

Highlights
Screen Size:
86
Brightness:
500 Nit
Product Type:
Digital Signage Display
Condition:
New
General Information
Manufacturer
LG Electronics
Manufacturer Part Number
86UH5C-B
Manufacturer Website Address
https://solutions.lg.com/us
Brand Name
LG
Product Model
86UH5C-B
Product Name
86" Ultra HD Signage with Split-Screen Functionality
Product Type
Digital Signage Display
Technical Information
Features
  • Temperature Sensor
  • Brightness Sensor
  • Tile Mode Setting (15 × 15)
  • USB Cloning
  • FailOver
  • Wake on LAN (WOL)
  • Beacon On/Off
  • Embedded Template
  • Pixel Sensor
    • 3D Type
    No
    Bezel Width
    0.59"
    Panel Technology
    In-plane Switching (IPS) Technology
    Image Sticking Minimization (ISM) Method
    Yes
    Memory
    Memory Card Supported
    SD
    Display & Graphics
    Viewable Screen Size
    86"
    Display Resolution
    3840 x 2160
    Aspect Ratio
    16:9
    Horizontal Viewing Angle
    178°
    Vertical Viewing Angle
    178°
    Orientation
    Landscape/Portrait
    Maximum LED Life
    5.7 Year
    Video
    Dynamic Contrast Ratio
    4,000,000:1
    Brightness
    500 Nit
    Network & Communication
    Wireless LAN
    Yes
    Interfaces/Ports
    HDMI
    Yes
    DisplayPort Output
    Yes
    RS-232C Input
    Yes
    DVI-D In
    Yes
    DisplayPort In
    Yes
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Power Consumption
    275 W
    Environmental Conditions
    Minimum Operating Temperature
    32°F (0°C)
    Maximum Operating Temperature
    104°F (40°C)
    Minimum Operating Humidity
    10%
    Maximum Operating Humidity
    80%
    Physical Characteristics
    Bezel Color
    Black
    VESA Mount Standard
    600 x 400
    Height
    43.2"
    Width
    5.8"
    Depth
    2.4"
    Weight (Approximate)
    108 lb
    Miscellaneous
    Additional Information
  • Accessories : Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover
  • Special Features : Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory, Wi- Fi built-in, USB Cloning, Contents Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template
  • OPS Type Compatible : Yes
  • External Control : IR Receiver
  • Input : RGB, Audio, USB 3.0
  • Output Connectivity : Audio Out
  • Power Consumption (Smart Energy Saving) : 193W
  • Power Type : Built-In Power
    • Certifications & Standards
  • EMC: FCC Class "A" / CE / KCC
  • UL
  • cUL
  • CB
  • TUV
  • KC
    • Compatible Software
  • SuperSign-w Lite
  • SuperSign C
    • Warranty
    Limited Warranty
    3 Year

    Specifications
