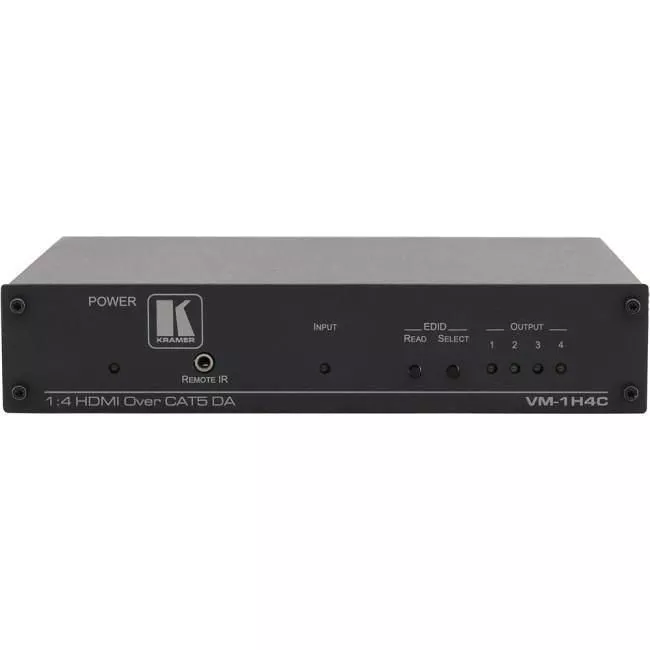

Kramer VM-1H4C 2 Input 1:4 HDMI DA/4x CAT5 Outputs

The VM-1H4C is a high-quality 1:4 twisted pair distribution amplifier for HDMI signal to PoC Long-reach DGKat signals. The unit receives serial commands and IR signals transparently via the RS-232 port and the TP link. It reclocks and equalizes the input signal and distributes it to four DGKat TP outputs.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• HDMI Support - x.v.Color™ and uncompressed audio channels, Dolby TrueHD, DTS-HD.
• 3D Pass-Through.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• System Range - Up to 90m (295ft) at 1080i or up to 30m (98ft) at 1080p on shielded Kramer CAT 5 cable. Up to 90m (295ft) at 1080i or up to 50m (164ft) at 1080p on shielded Kramer CAT 6 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded Kramer CAT 7 cable.
  Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
• Power Connect - The VM-1H4C provides power to the twisted pair receivers when they are within 270ft (90m) of the transmitter.
• Active Input & Output LED Indicators.
• Serial Command Handling - Receives serial commands transparently via the RS-232 port and the TP link.
• Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.

• Home theater, presentation and multimedia applications.
• Rental and staging.
