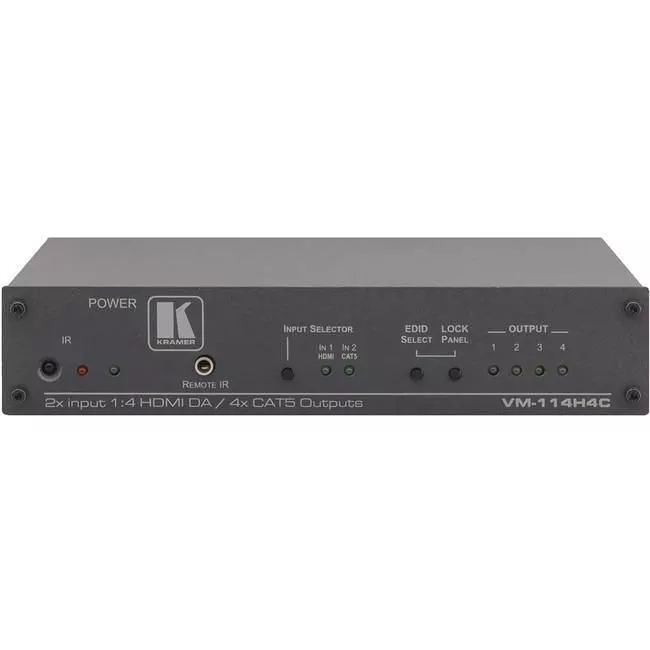

KRA-VM-114H4C-00
MPN: VM-114H4C

Kramer VM-114H4C 2 Input 1:4 HDMI DA/4x CAT5 Outputs

Highlights

The VM-114H4C is a high-performance PoC switcher and distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals (HDMI or DGKat twisted pair) and distributes it to four DGKat twisted pair outputs.

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD (only on the TP inputs and outputs).
  • 3D Pass-Thru.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • Active Input & Output LED Indicators.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
  • Flexible Control Options - Front panel buttons, RS-232, infrared control sensor, remote included.

APPLICATIONS

  • Home theater, presentation and multimedia applications.
  • Rental and staging.
