KRA-KDS-DEC6-00
MPN: KDS-DEC6

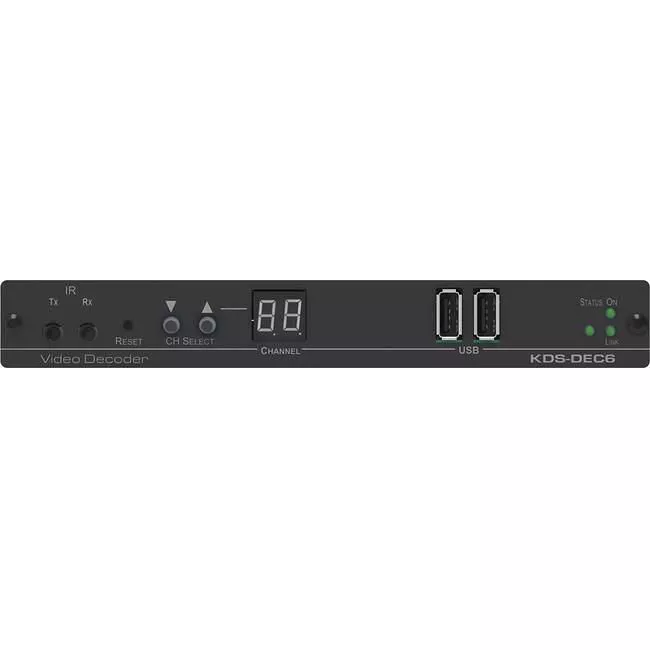

Kramer KDS-DEC6 60-000390 4K60 4:2:0 HDCP 2.2 Video Decoder

Highlights

The KDS-DEC6 decoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS-232, USB over IP with HDCP 2.2 in unicast (one-to-one) or multicast (many-to-many) configurations.

  • Video Support - HDMI 4K@60Hz (4:2:0).
  • Audio Support - HDMI/line in, 7.1 PCM, Dolby True-HD, and DTS-HD Master audio.
  • Virtualization - IR, USB, RS-232 over IP.
  • Network - Switch 1G multicast IGMP snooping managed layer 2.
  • Power - PoE or external power supply.
  • Control - Kramer Network, Web UI, API.
  • HDCP - 2.2 compliance.
  • Video Effects - PIP, video wall.

Applications

  • For a real-time essential installation. such as sports bars and interactive solutions
  • AV distribution systems with one or more sources and many displays in schools, universities and public venues
  • Long-distance transmission of signals using existing wires and infrastructure in corporate offices, government applications
  • Advanced applications where functions such as recording, archiving, scaling and more are required
