Highlights:
  • Product Type: Audio/Video Switchbox
  • Form Factor: Rack-mountable
  • Condition: New
  • Category: Video Cards and Devices
Contact sales for pricing

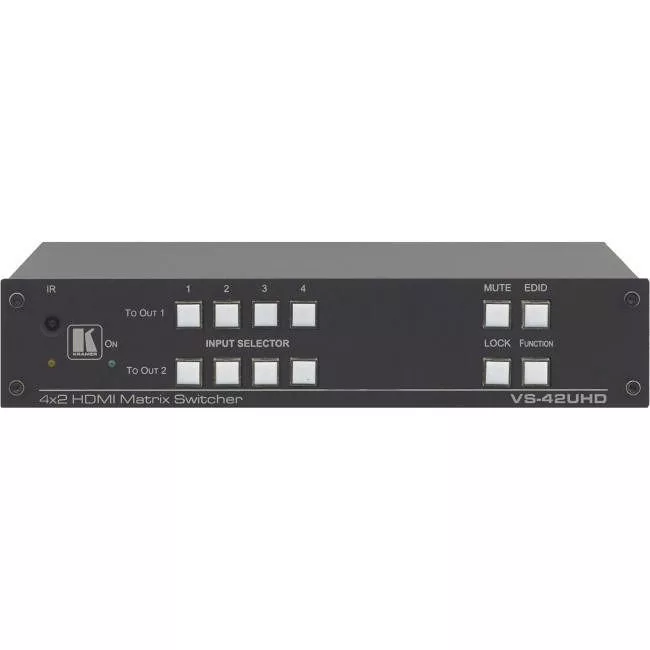

VS-42UHD is a high-quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDCP Compliant
  • True Video Clock Detection.
  • Automatic Switching Modes - Last connected and priority switching.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Programmable Step-in Functionality - When used with compatible step-in devices, such as the SID-X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Static or Dynamic DHCP IP Addressing.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Lock Button - Prevents tampering with the front panel buttons.
  • Kramer Protocol 3000.
  • Versatile Control Options - RS-232, Ethernet, infrared remote control, optional remote IR receiver.

Applications

  • Conference rooms
  • Education
  • Hospitality
General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Website Address
http://www.kramerelectronics.com
Brand Name
Kramer
Product Model
VS-42UHD
Product Name
4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
4
Device Supported
  • Display
  • Computer
  • Blu-ray Disc Player
  • Number of Displays Supported
    2
    Video
    Graphics Modes
    4K
    Maximum Video Resolution
    4096 x 2160
    Interfaces/Ports
    HDMI In
    Yes
    HDMI Out
    Yes
    Connectivity (RJ-45)
    Yes
    Number of Connectivity (RJ-45) Ports
    1
    Number of USB Ports
    1
    Number of HDMI Inputs
    4
    Number of HDMI Outputs
    2
    Physical Characteristics
    Form Factor
    Rack-mountable
    Height
    1.7"
    Width
    8.5"
    Depth
    6.4"
    Weight (Approximate)
    1.98 lb
