KRA-20-00611090-00
MPN: 20-00611090

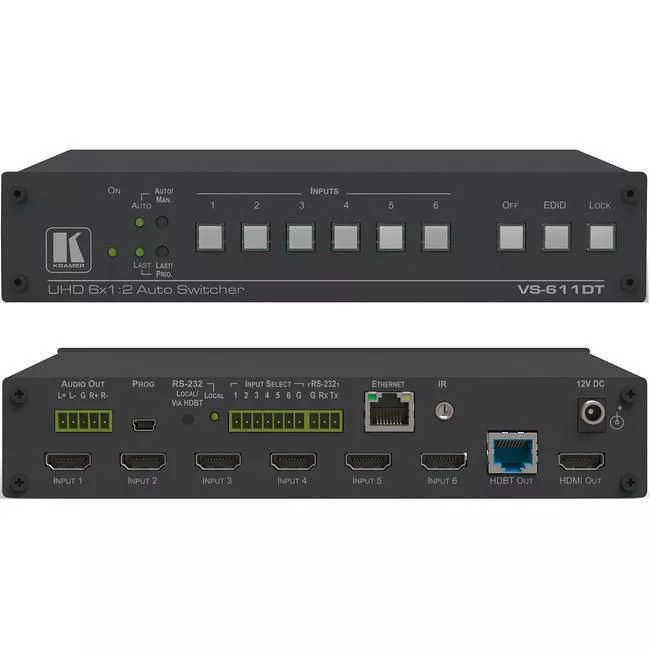

Kramer 20-00611090 VS-611DT 6:1 4K auto switcher with HDMI and HDBT outputs


Highlights

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDTV Compatible.
  • HDCP Compliant - Works with sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, Ethernet, ARC, 7.1 PCM.
  • Customized Audio Output - De-embed the audio from the HDMI input and route it to the balanced stereo audio line out, or de-embed HDMI ARC from the output and route it to the balanced stereo audio line out.
  • Features Kramer reKlockingâ„¢ Technology - Rebuilds the digital signal to travel longer distances.
  • Step-in Master Support.
  • Auto-Power Off - When no HDMI input for 30 seconds (selectable).
  • Automatic Input Detection & Selection.
  • HDCP On/Off Switching.
  • EDID Configuration Options.
  • Selectable Switching - Manual or fast auto-switching according to last connected or preset priority.
  • Full HDBaseT Certification - Including bidirectional RS-232, Ethernet, IR and POE.
  • HDBaseT Extended Reach - Up to 100m at 4K@60Hz (4:2:0).
  • POE Source for HDBaseT Receivers.
  • Contact Closure - For remote manual switching override.
  • Firmware Upgrade - Over mini-USB, RS-232 or RJ-45 Web page.
  • Varied Control Options - Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT.
  • Built-in Web Server.
  • Software Support - For Protocol 3000, K-Router Plus, EDID Designer, K-Upload.

APPLICATIONS

  • Mid-sized meeting/conference rooms
  • Mid - to large-sized lecture rooms
