KXP-WP-EXTHDBTX1-00
MPN: WP-EXTHDBTX1

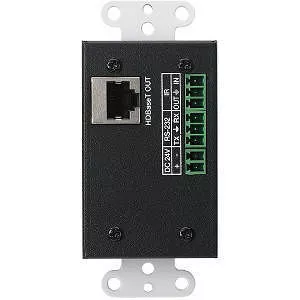

KanexPro WP-EXTHDBTX1 Single Gang HDMI Wall plate over HDBaseT w/ IR, RS-232 & PoC


Highlights

The KanexPro WP-EXTHDBTX1 is a US Decora style single gang HDMI 2.0® wall plate transmitter designed for connecting one HDMI device such as a laptop, Blu-ray, or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.

PoC & Control

The wall plate transmitter supports PoC - power over cable requiring only power supply from the Receiver optional, part# EXT-HDBT70MRX side to operate. It also supports bi-directional IR control and RS-232 control for devices to and from the display.

Applications:

Ideal for use within court rooms, classrooms, conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI source device. This single-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling.
