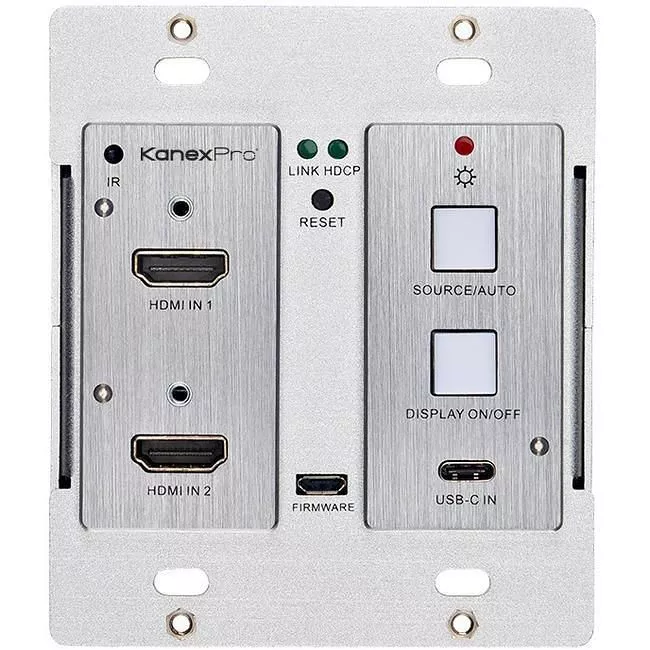

KanexPro WP-2X1HDUSBC Double Gang 4K HDMI 2.0 & USB-C Wallplate Switcher over HDBaseT w/ IR & PoH

Highlights

The KanexPro WP-2XHDUSBC is a US Decora style double-gang, 3x1 Wall plate transmitter and switcher designed to switch two HDMI®2.0 inputs and one USB-C input to a remote display or a projector up to 131ft.(40m) at 4K/60 and 230ft.(70m) at 1080p/60 video and audio over single cat5e/6/7 cable. The outputs are via HDBaseT port. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.

Auto Switching with Display On / Off feature

The wall plate transmitter can be easily controlled by selecting the Source /Auto button on the front panel. By holding the button for 3 seconds, it will go under auto switching mode and will auto-detect HDMI or USB-C inputs when connected. It also supports CEC, which can turn the DISPLAY ON/OFF right from the button on front panel for the far-end display device, and it can be programmed by IR learning or RS232 command to ensure the compatibility with various display devices. Moreover, 12V-24V PoC allows the switcher can be powered from the compatible HDBaseT receiver and regulate the power needed without adding another cumbersome power supply.

Applications:

Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI/ USB-C source devices. The dual-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling with powerful ON/OFF display feature.

Features

  • US Decora Style, Double-Gang HDMI® 2.0 & USB-C wall plate over HDBaseTâ„¢
  • Supports HDMI signal up to 4K@60Hz 4:4:4,
  • USB-C video signal up to 4K@30Hz 4:4:4.
  • EDID & HDCP 2.2 compliant
  • Active input automatic detective.
  • Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
  • Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
  • Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
  • Digital Audio Support up to 7.1 channels of HD audio
  • Supports RS232 pass-through with HDBaseT connection and local control.
  • Supports IR pass-through to extend IR signal to control display device.
  • Display On/Off button can be programmed by IR learning feature or via RS232 command
  • HDBaseT port supports 12V-48V PoH input, the switcher can be powered from the compatible HDBaseT receiver by the CATx cable
  • Provides external 12V DC power supply for other devices
  • Firmware upgrade by Micro-USB port
  • Bi-directional IR & RS-232C
  • Simple point-to point transmission over CAT5e/6
  • Active LED status indicators
