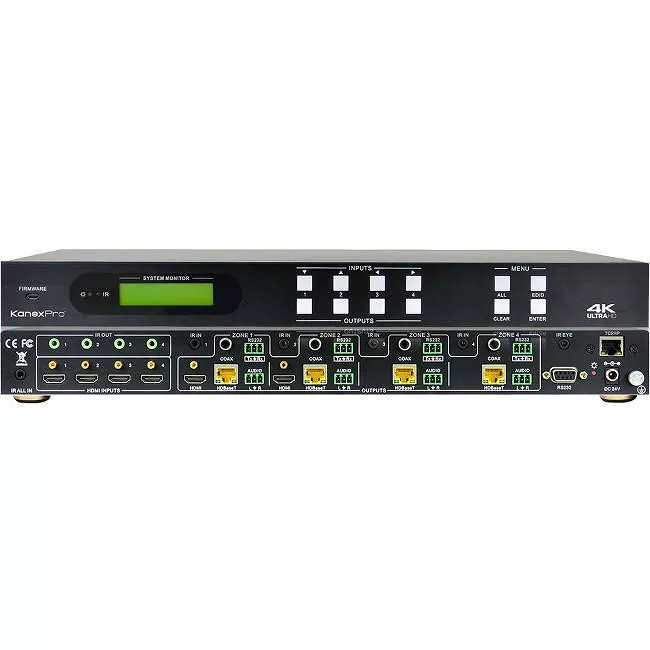

KanexPro MX-HDBASE4X4-4K 4K HDBase 4x4 Matrix Switcher

The KanexPro MX-HDBASE4X4-4K matrix switcher is a professional 4 HDMI input to 4 HDBaseT output switch with 2 HDMI mirrored outputs designed for routing 4K/60 Hz applications supporting HDCP 2.2. For proficient audio capabilities it includes 4 stereo audio and 4 digital coax outputs for de-embedding to analog audio and HDMI digital audio respectively. Audio sources can also be selected via RS232 commands. Selected audio is sent via HDMI outputs & HDBaseT outputs and the audio output sockets.

The matrix switcher also features Ethernet port for controlling via web based GUI which reduces installation time and complicated set-up as well as full control for the matrix. The HDMI inputs from the matrix can be controlled via front panel buttons, IR, RS232, or thru a web-based GUI using IP. The selected source is delivered to HDMI Output 1~2 (for HDMI input 1~2) & HDBaseT outputs 1~4 (easy extension to 70m at 1080p and 35m at 4Kx2K on a single CAT5e/6 connection with optional PoE based HDBaseT receivers) simultaneously.

Applications:

Ideally designed for higher education environments such as smart classrooms, multi-zone residential homes or commercial distribution applications, this matrix is rack-mountable and also includes international power supply.

Please note: The HDBASE70POER receivers are not included with this matrix switcher please contact our sales team on ordering these to match your application. To reduce video dropout problems from lighting, ceiling fans and other EMI issues, it is strongly recommended to use shielded CAT5e/CAT6 and use shielded RJ45 connectors with our HDBaseT products.
