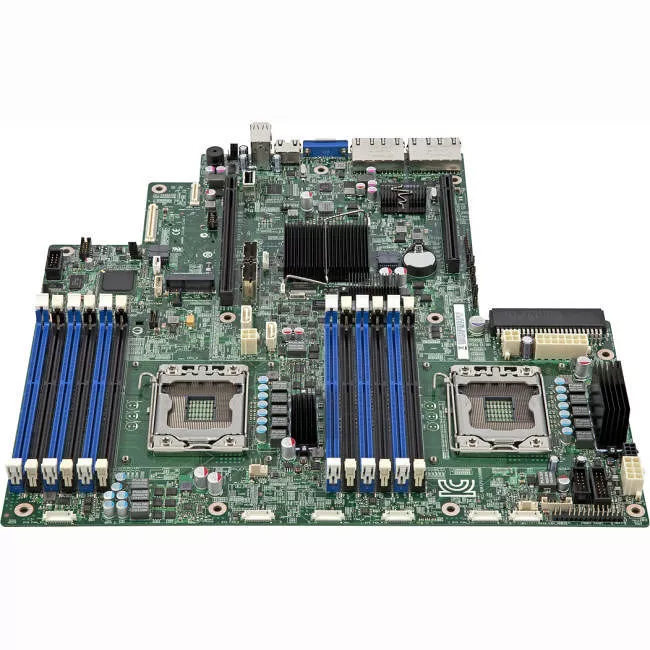

Intel S2400BB4 Server Motherboard - C602-A Chipset - Socket B2 LGA-1356 - Proprietary Form Factor

The Intel® Server Board S2400BB features an energy efficient spread core design, 12V power input, and high efficiency VR components. Designed for rack optimization, the Intel Server Board S2400BB is only available as part of an integrated 1U or 2U bare bones server system, which includes optimized fan speed control, ACPI S3 sleep state, and 80 PLUS* Platinum certified power supplies.

Intel® TXT support, mSATA, eUSB SSD, type A USB, SATA DOM, and options for dual- or quad-GbE ports further enhance the board flexibility.

Innovative Intel Server Board S2400BB-based systems deliver performance and I/O flexibility with up to 192 GB of memory capacity, 40 flexible lanes of PCIe* Gen3 via a x24 Super Slot and a x16 riser slot. In addition, the board supports an Intel® I/O Expansion Module and an optional dedicated management LAN via a dedicated Intel® RMM4 connector.
