INT-S1200BTS-00
MPN: S1200BTS

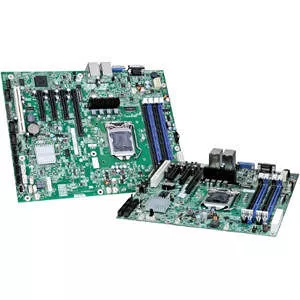

Intel S1200BTS Server Motherboard - C202 Chipset - Socket H2 LGA-1155 - Micro ATX

Highlights
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
S1200BTS
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
S1200BTS
Product Name
S1200BTS Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C202
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Xeon
  • Core i3
    • QuickPath Interconnect
    2.50 GT/s
    64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    4
    Memory Form Factor
    UDIMM
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-1066/PC3-8500
  • DDR3-1333/PC3-10600
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    SM712
    Graphics Controller Memory
    4 MB
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    4
    Number of PCI Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    3
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    No
    Audio Line Out
    No
    Microphone Port
    No
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 2.0 Ports
    3
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Certifications & Standards

    CE

    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
