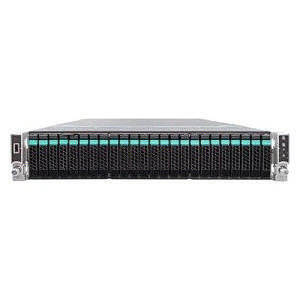

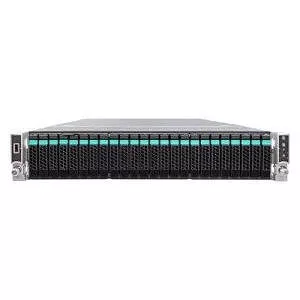

Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R2224WTTYS
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R2224WTTYS
Product Name
Server System R2224WTTYS
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
RAID Levels
0, 1, 10
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Internal 2.5" Bays
24
Number of Total Expansion Slots
7
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
6
Interfaces/Ports
Total Number of USB Ports
5
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
InfiniBand
No
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
1100 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
16.9"
Depth
28"
