ABOUT
Best-in-class performance, reliability, and serviceability

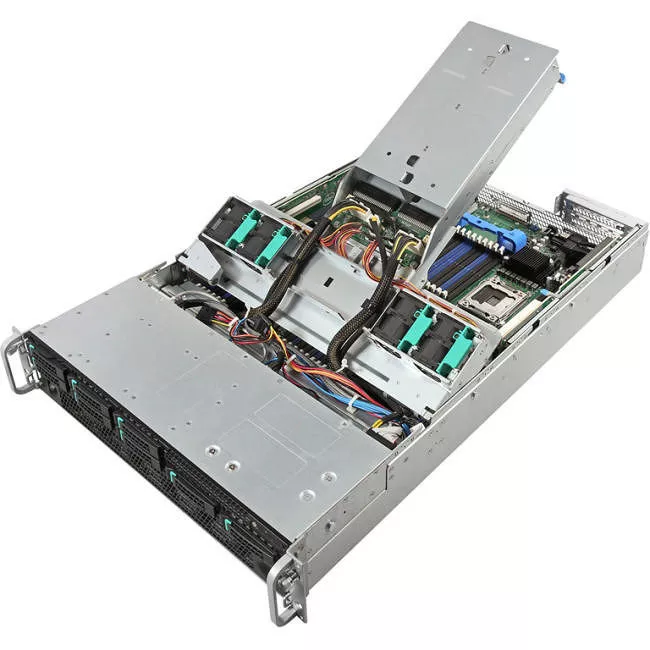

The Intel® Server System R2200LH2/R2200LT2 family is the uncompromising performance and high reliability server of choice for demanding customers. It features support for four powerful Intel® Xeon® processor E5-4600 and a massive memory capacity of 1.5 TB via 48 memory sockets in a dense 2U system. Six PCIe* Gen 3 x16 slots, two Intel® I/O Expansion Modules, and options for integrated dual 1 GbE or 10 GbE provide the expandability and flexibility that enterprise-class customers demand.
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R2208LT2HKC4
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R2208LT2HKC4
Product Name
Server System R2208LT2HKC4
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
4
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
Processor Technology
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Maximum Memory
1.50 TB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
48
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
6
Number of PCI Express x16 Slots
6
Interfaces/Ports
Total Number of USB Ports
6
Network (RJ-45)
Yes
Number of SATA Interfaces
10
Number of SAS Interfaces
8
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.2"
Depth
28"
Miscellaneous
Package Contents
- Server System R2208LT2HKC4
- Intel Server Board S4600LT2 Supporting 48 DIMMs
- 8 x 2.5" Hot Swap Drive Carriers
- 1 x 8 port SAS 6G PCIe ROC Module RMS25PB080
- 2 x SFF8088 to SFF8088 Cables
- 1 x Integrated Dual Port Intel Ethernet Controller X540 (10GbE)
- 2 x 1600W AC Platinum Efficiency Redundant Power Supplies
- 1 x Fan Board
- 1 x Power Distribution Board
- 2 x Risers with 3 x16 Slots (2xFHFL 1xFHHL)
- 2 x Front CPU Heatsinks Aluminum Extrusion
- 2 x Rear CPU Heatsinks Cu/Al Extrusion
- 11 x Redundant and Hotswap Cooling Fans
- 1 x Extended Value Rails
- 1 x Rack Handles
- 1 x Intel Remote Management Module 4
Warranty
Limited Warranty
3 Year
See More
