ABOUT
Get More For Your Data Center
Customers want data center products designed for outstanding performance and reliability that will address their unique needs. With Intel® Server Systems featuring the latest Intel® Xeon® processor families you can count on trusted performance, quality and reliability to help solve the most complex business challenges.
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R1304SPOSHBNR
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R1304SPOSHBNR
Product Name

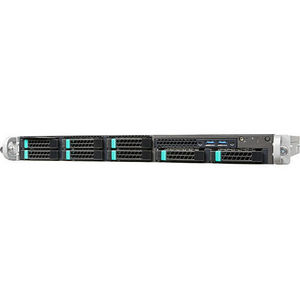

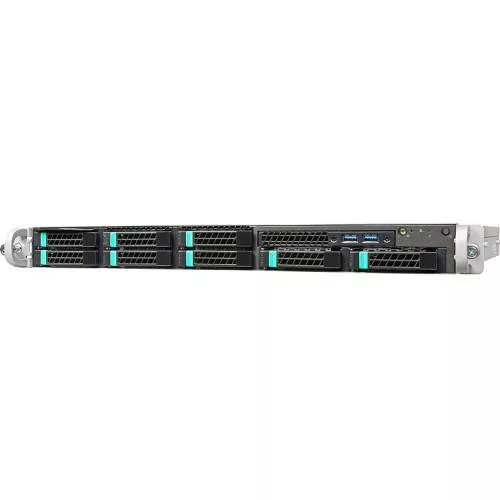

Server System R1304SPOSHBNR
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C236
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Number of Total Memory Slots
4
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
5
Number of External 5.25" Bays
1
Number of 3.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
9
Number of SATA Interfaces
8
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
350 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.3"
Depth
23.8"
Miscellaneous
Package Contents
- Server System R1304SPOSHBNR
- 1 x Server Board S1200SPOR
- 1 x Riser Card Assembly (AXX1UPCIEX16R2)
- 1 x 350W Fixed Power Supply
- 4 x 3.5 inch Hot-swap Drive Bays with (4) 3.5 inch Hot-swap Drive Trays (FXX35HSCAR)
- 1 x 12Gb SAS Backplane (FR1304S3HSBP)
- 1 x SATA Data Cable
- 1 x Backplane 12C Cable
- 1 x SATA ODD Data Cable
- 1 x SAS Data Cable
- 3 x System Fans
- 1 x Standard Control Panel Assembly
- 1 x Front I/O Panel Assembly (1 x VGA & 2 x USB)
- 1 x SATA Optical Drive Bay with Filler Panel
- 2 x Chassis Handles
- Heat Sink
Warranty
Limited Warranty
3 Year
