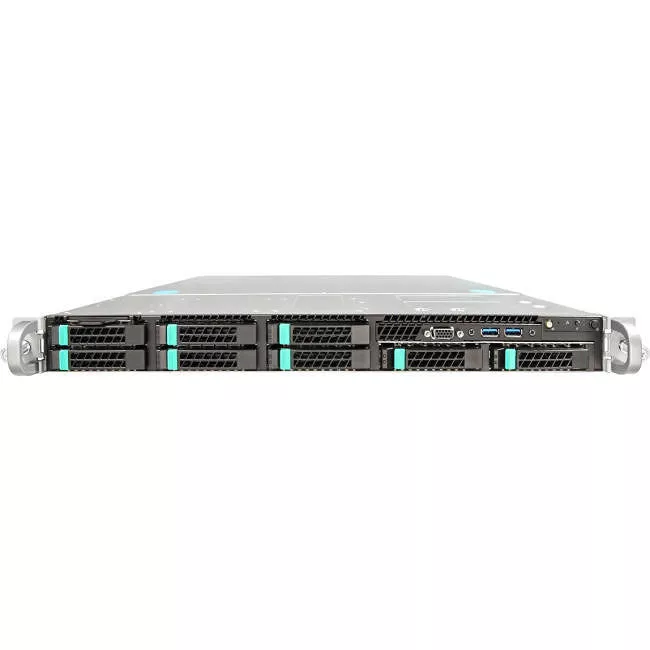

Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R1208WTTGS
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R1208WTTGS
Product Name
Server System R1208WTTGS
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
RAID Levels
0, 1, 10
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
9
Number of External 5.25" Bays
1
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
4
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
8
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
InfiniBand
No
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
750 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
16.9"
Depth
28"
