ABOUT
Target applications

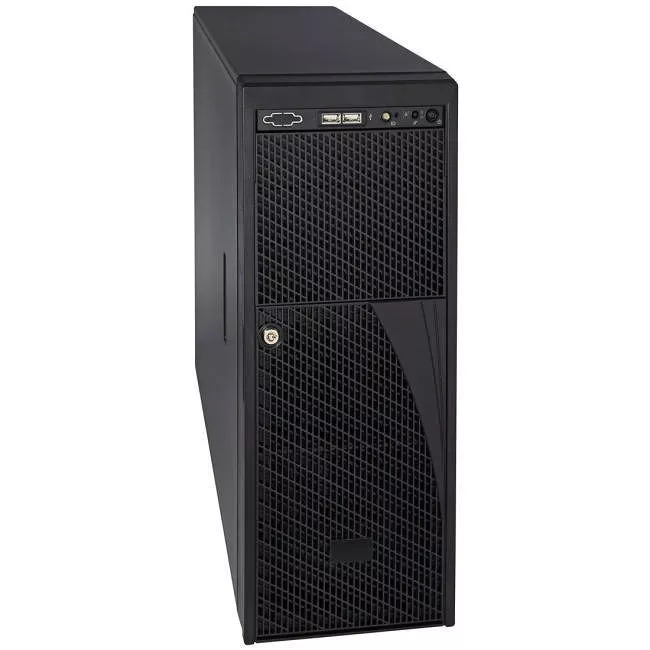

The 4U Intel Server System P4300SC family is the ideal choice for Small Businesses seeking to maximize return on investment with a "real" dual-socket server; delivering affordable performance while providing storage and I/O flexibility.
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
P4308SC2MHGC
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
P4308SC2MHGC
Product Name
Server System P4308SC2MHGC
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket B2 LGA-1356
Processor Supported
Xeon
Processor Technology
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Maximum Memory
128 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 1+0, 5
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of 3.5" Bays
8
Number of Total Expansion Slots
5
Number of PCI Slots
1
Number of PCI Express x4 Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
10
Network (RJ-45)
Yes
Number of SATA Interfaces
14
Software
Software Included
Intel Server Management Software
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.8"
Width
17.2"
Depth
24.9"
Miscellaneous
Package Contents
- Server System P4308SC2MHGC
- 1 x Intel Server Board S2400SC2
- 8 x 3.5" HotSwap HDD Backplane and Drive Carriers
- 2 x 750W Common Redundant Power Supplies
- 1 x Power Distribution Board
- 5 x Redundant Fans
- 2 x Passive Heatsinks
- 1 x Full Intel Remote Management Module 4
- 1 x Air Duct
- 1 x Intel P4000 25" Depth Chassis
Warranty
Limited Warranty
3 Year
