MPN: P4304XXSHCN

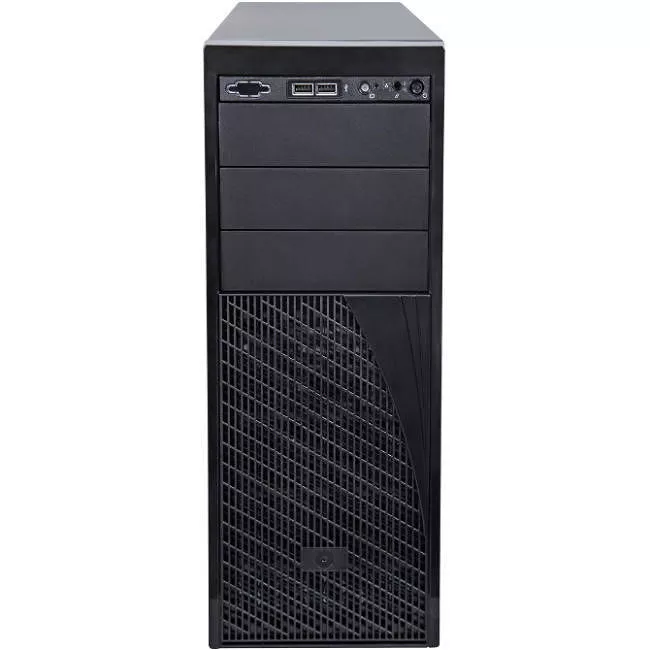

Intel P4304XXSHCN Server Chassis

Highlights

About

Specifications

An entry-level general purpose pedestal chassis supporting four 3.5 hot-swap HDDs, and a non-redundant power supply, optimized for thermal and acoustic performance.

Specifications

General Information

Manufacturer

Intel Corporation

Manufacturer Part Number

P4304XXSHCN

Manufacturer Website Address

http://www.intel.com

Brand Name

Intel

Product Model

P4304

Product Name

Server Chassis P4304XXSHCN

Packaged Quantity

Product Type

Server Case

Technical Information

Motherboard Supported

ATX

Micro ATX

Number of Fans Installed

Installed Fan Size

3.62"

Bays

Number of External 5.25" Bays

Number of External 3.5" Bays

Number of Total Expansion Bays

I/O Expansions

Number of Total Expansion Slots

Interfaces/Ports

Total Number of USB Ports

Front USB

Yes

Power Description

Power Supply Installed

Yes

Number of Power Supplies Installed

Power Supply Wattage

365 W

Redundant Power Supply

Physical Characteristics

Compatible Rack Unit

Form Factor

Pedestal

Height

17.2"

Width

6.8"

Depth

21.5"

Miscellaneous

Package Contents

Server Chassis P4304XXSHCN
1 x System fan assembly
1 x Front Panel assembly with cables
1 x 365W Fixed Mount Power Supply
1 x System fan assembly
4 x 3.5 inch Hot swap drive carriers
2 x ODD Slide Rail Assemblies
1 x 450mm SATA data cable
1 x 600mm I2C data cable
1 x 450mm SGPIO data cable
1 x 200mm chassis intrusion switch cable

Warranty

Limited Warranty

3 Year
