Get powerful, get flexible, get efficient with the latest Intel® Server Systems supporting the Intel® Xeon® processor E5 product family
About
Get powerful, get flexible, get efficient with the latest Intel® Server Systems supporting the Intel® Xeon® processor E5 product family
Specifications
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
H2216JFQKR
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
H2216JFQKR
Product Name

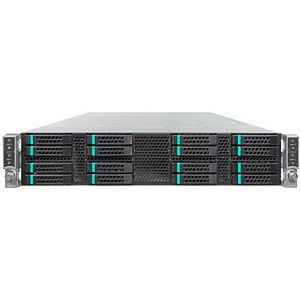

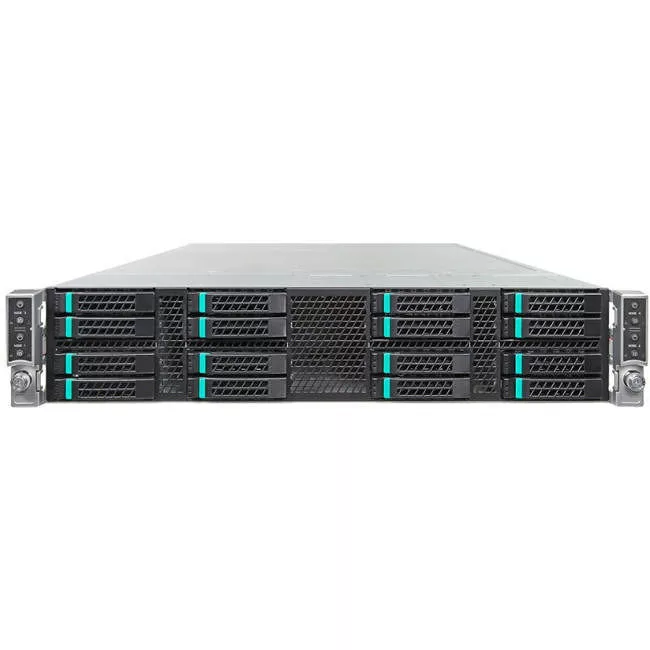

Server System H2216JFQKR
Product Type
Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
8
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
32
Storage
Optical Drive Type
No
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
16
Number of Internal 2.5" Bays
16
Total Number of Expansion Slots
4.0
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
20
Network (RJ-45)
Yes
Number of SATA Interfaces
24
Number of SAS Interfaces
16
InfiniBand
Yes
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
29.5"
Miscellaneous
Package Contents
- Server System H2216JFQKR
- 4 x Intel Server Board S2600JFQ with InfiniBand QDR (40Gb/s)
- 4 x Bridge Board
- 4 x Node Power Board
- 4 x PCIe x16 Riser Card
- 8 x 1U Passive 91.5mm x 91.5mm Heat Sink
- 12 x 4056 Dual Rotor Fan
- 4 x Air Duct
- 4 x 1U Node Tray
- 1 x 2.5'' SATA/SAS Backplane to support 16x 2.5" Hot-Swap HDD
- 16 x 2.5'' Drive Carriers
- 2 x 1600W Common Redundant Power Supply (Platinum Efficiency)
- 2 x Power Distribution Boards
- Value Rails
Warranty
Limited Warranty
3 Year
