INT-FUP365SNRPS-00
MPN: FUP365SNRPS

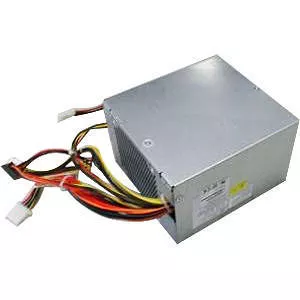

Intel FUP365SNRPS EPS12V 365W Power Supply

Highlights
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
FUP365SNRPS
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
FUP365SNRPS
Product Name
EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
EPS12V
Protection Type
  • Over Current
  • Over Voltage
  • Over Thermal
    • Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
  • 100 V AC - 127 V AC
  • 200 V AC - 240 V AC
    • Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Current
  • 18 A
  • 10 A
  • 16 A
  • 500 mA
  • 2.50 A
    • Output Power
    365 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 4 x 15-pin Serial ATA
  • 5 x 4-pin Peripheral Device
    • Physical Characteristics
    Form Factor
    Internal
    Miscellaneous
    Compatibility

    Intel Server Systems:

    • P4304BTLSHCN
    • P4304BTSSFCN
    • P4304BTLSFCN

    Intel Server Chassis:

    • P4304XXSFCN
    • P4304XXSHCN
    Environmentally Friendly
    Yes
