Low-cost entry one-socket server board for small business

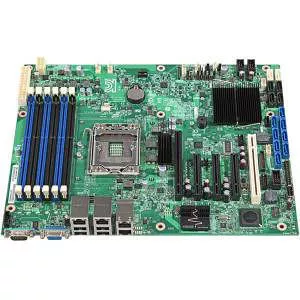

The Intel® Server Board S1400FP family is Intel's lowest-cost server board supporting the Intel® Xeon® processor E5-2400 product family. The Intel Server Board S1400FP family delivers real server benefits including five PCIe slots for I/O expandability, 14 onboard SATA ports for storage flexibility, entry-level server connectivity and management via the integrated BMC, in addition to six registered/unbuffered memory slots.
Target applicationsThe Intel Server Board S1400FP family is ideal as an entry-level server for small businesses, or for storage deployments where minimizing cost is imperative.
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
DBS1400FP4
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
S1400FP4
Product Name
S1400FP4 Server Motherboard
Packaged Quantity
5
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Processor Socket
Socket B2 LGA-1356
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Number of Memory Slots
6
Memory Form Factor
Maximum Memory
96 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Memory
128 MB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Dedicated
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
3
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
3
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Serial Port
Yes
Audio Line In
No
Audio Line Out
No
Microphone Port
No
VGA
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
4
Onboard Interfaces
Number of SATA Interfaces
14
Number of SAS Interfaces
0
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
