INT-BBS1600JP4-00
MPN: BBS1600JP4

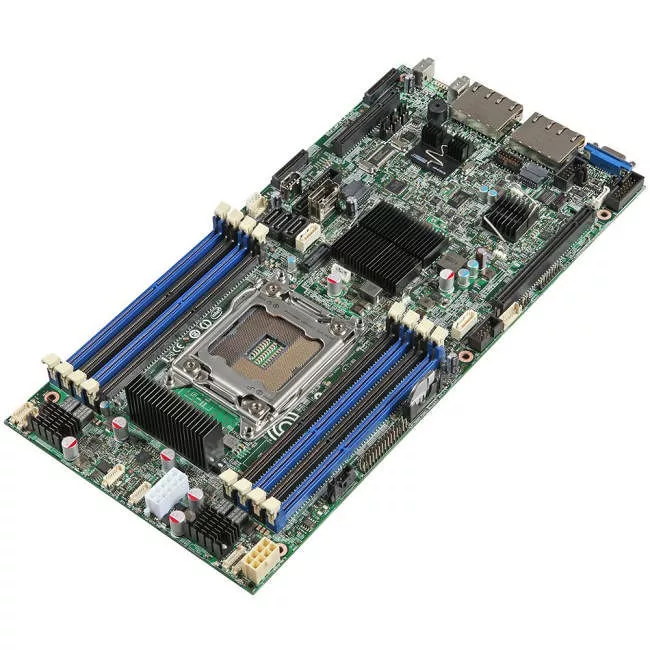

Intel BBS1600JP4 S1600JP4 Server Motherboard - Socket R LGA-2011


Highlights
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
BBS1600JP4
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
S1600JP4
Product Name
S1600JP4 Server Motherboard
Packaged Quantity
10
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Processor Technology
Trusted Execution Technology
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Number of Memory Slots
8
Memory Form Factor
  • DIMM
  • UDIMM
  • RDIMM
  • LRDIMM
  • Maximum Memory Supported
    256 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • I/O Controller
    Controller Type
  • Serial Attached SCSI (SAS)
  • Serial ATA
  • RAID Supported
    Yes
    RAID Levels
    5
    Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    16 MB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Dedicated
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    PCI Express Standard
    PCI Express 3.0
    Total Number of PCI Express Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    4
    Onboard Interfaces
    Number of SATA Interfaces
    10
    Number of SAS Interfaces
    4
    Physical Characteristics
    Width
    13.8"
    Depth
    6.8"
    Miscellaneous
    Compatibility
    • Intel RAID Controller RS2BL080
    • Intel RAID Controller RS2BL040
    • Intel RAID Controller RS2PI008
    • Intel RAID Controller RS2WC080
    • Intel RAID Controller RS2WC040
    • Intel RAID Controller RS2PI008DE
    • Intel RAID Controller RS2MB044
    • Intel RAID Controller RS2WG160
    • Intel RAID Controller RS2SG244
    • Intel RAID Controller RT3WB080
    • Intel RAID Controller RS2VB080
    • Intel RAID Controller RS25DB080
    • Intel RAID Controller RS25GB008
    • Intel RAID Controller RS25NB008
    • Intel Integrated RAID Module RMS25PB080
    • Intel Integrated RAID Module RMS25PB040
    • Intel Integrated RAID Module RMS25KB080
    • Intel Integrated RAID Module RMS25KB040
    • Intel RAID C600 Upgrade Key RKSATA4R5
    • Intel RAID C600 Upgrade Key RKSAS4
    • Intel RAID C600 Upgrade Key RKSAS4R5
    • Intel Server System R1304JP4OC
    • Intel Server System R1208JP4OC
    • Intel Server System R1304JP4GS
    • Intel Server System R1208JP4GS
    • Intel Server System R1304JP4TC
    • Intel Server System R1208JP4TC
    Energy Star
    Yes
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
