INT-BBS1200BTLR-00
MPN: BBS1200BTLR

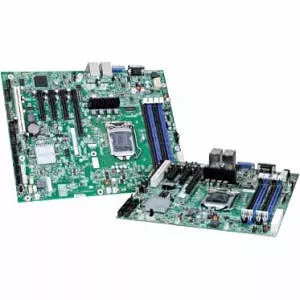

Intel BBS1200BTLR S1200BTLR Server Motherboard - C204 Chipset - Socket H2 LGA-1155 - ATX

Highlights
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
BBS1200BTLR
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
S1200BTLR
Product Name
S1200BTLR Server Motherboard
Packaged Quantity
10
Package Type
OEM
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C204
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory Supported
32 GB
Memory Standard
  • DDR3-1066/PC3-8500
  • DDR3-1333/PC3-10600
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    64 MB
    Graphics Memory Technology
    DDR2 SDRAM
    Graphics Memory Accessibility
    Dedicated
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    5
    Number of PCI Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    4
    Number of PCI Express x4 Slots
    3
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    No
    Audio Line Out
    No
    Microphone Port
    No
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S1200BTLR Server Motherboard
    • 1 x ATX I/O Shield
    • 2 x SATA HDD Cables
    • RoHS Declaration Documentation
    • Attention Document
    • Quick Start User's Guide
    • Quick Config Label
    • Resource DVD With Utilities
    • Drivers
    • Documentation and Technical Information
    Warranty
    Limited Warranty
    3 Year
