About
Specifications
- Full-sized productivity in a compact design
- Affordably connect up to 8 devices
- 4K Ultra HD (UHD)
- SD and Micro SD card reader built-in
- Use your USB-C power supply - Charge your laptop up to 45W
About
- Full-sized productivity in a compact design
- Affordably connect up to 8 devices
- 4K Ultra HD (UHD)
- SD and Micro SD card reader built-in
- Use your USB-C power supply - Charge your laptop up to 45W
Specifications
General Information
Manufacturer
IOGEAR, Inc
Manufacturer Part Number
GUD3C03
Manufacturer Website Address
http://www.iogear.com
Brand Name
IOGEAR
Product Name

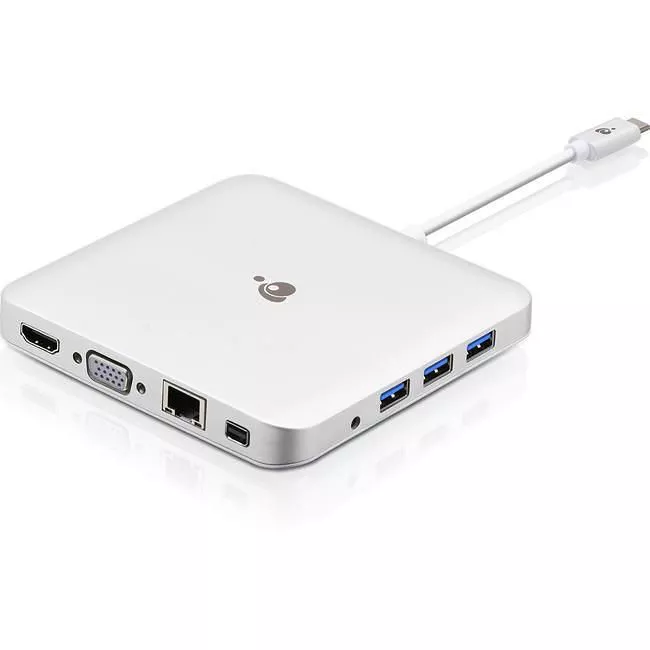

USB-C Docking Station with Power Pass-Thru
Packaged Quantity
1
Package Type
Retail
Product Type
Docking Station
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Device Supported
Notebook
Memory Card Reader
Yes
Memory Card Supported
Screen Mode Supported
Supported Resolutions
Network & Communication
Ethernet Technology
Gigabit Ethernet
Interfaces/Ports
Host Interface
USB Type C
Audio Line In
Yes
Audio Line Out
Yes
Total Number of USB Ports
4
Number of USB 3.0 Ports
3
Number of USB Type-A Ports
3
Number of USB Type-C Ports
1
USB Type-A
Yes
USB Type-C
Yes
Network (RJ-45)
Yes
Number of RJ-45 Ports
1
VGA
Yes
Number of Mini DisplayPort
1
Mini DisplayPort
Yes
DisplayPort Version
1.2
Headphone/Microphone Combo Port
Yes
Number of HDMI Ports
1
HDMI
Yes
HDMI Version
1.4
Thunderbolt
Yes
USB Power Delivery
60W
Software
Operating System Supported
Power Description
Maximum Power Supply Wattage
60 W
Physical Characteristics
Height
0.47"
Depth
4.70"
Length
4.7"
Weight (Approximate)
8 oz
Miscellaneous
Package Contents
- Compact USB-C Docking Station with PD Pass-Thru
- 1 x Quick Start Guide
- 1 x Warranty Card
Additional Information
- Upstream Port - USB-C : Built-in USB 3.1 Type-C cable
- Downstream Port - HDMI : 1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
- Downstream Port - Mini DisplayPort : 1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
- Downstream Port - VGA : 1x VGA port (up to 1920x1200@60Hz)
- Downstream Port - Ethernet : 1x Gigabit Ethernet port
- Downstream Port - USB-A : 3x USB 3.0 A ports, 1 port with BC1.2 charging
- Downstream Port - USB-C : 1x USB-C port for Power Delivery pass-through only
- Downstream Port - Card Reader : Supports SD/SDHC/SDXC @ UHS-I class, MMC
- Downstream Port - Audio : 1 x 3.5mm (in/out shared)
- Power - Power Delivery Pass-Thru : 60W (A total of up to 45W can be charged to the laptop after deduction of max 15W used by the dock)
- Operating System Requirements - Windows : Windows 7/8/8.1/10
- Operating System Requirements - Mac : Mac OS X 10.10.5+
- Inner Pack - Width : 5.1" (13cm)
- Inner Pack - Height : 7.5" (19cm)
- Inner Pack - Length : 6.7" (17cm)
- Inner Pack - Inner Pack Qty. : 6
- Unit Package Dimensions - Height : 0.79" (2cm)
- Unit Package Dimensions - Depth : 7" (18cm)
- Unit Package Dimensions - Length : 6.3" (16cm)
- Master Carton - Width : 14" (36cm)
- Master Carton - Height : 11" (28cm)
- Master Carton - Depth : 8.3" (21cm)
- Master Carton - Master Carton Qty. : 24
- Weight - Master Carton Wt. : 17.2 lb (7.8kgs)
- Weight - Inner Pack Wt. : 4.2 lb (1.9kgs)
- Weight - Unit Pack Wt. : 0.65 lb (0.3kgs)
System Requirements
Environmentally Friendly
Yes
Environmental Compliance
Country of Origin
China
Warranty
Limited Warranty
1 Year
