Highlights:
  • Application/Usage: Wireless Data Network
  • Cable Length: 2.75 ft
  • Directivity: Omni-directional
  • Certifications & Standards: IEEE 802.11n
Contact sales for pricing

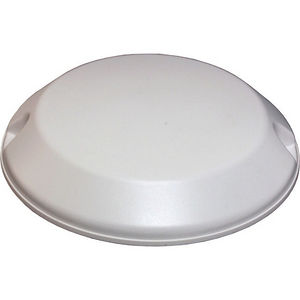

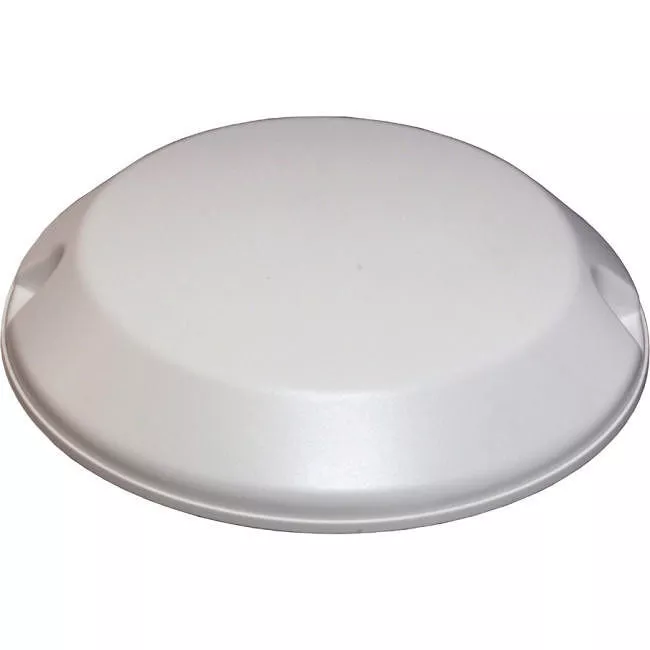

The HP JG696A is an indoor ceiling grid-mounted omnidirectional array especially designed for use with dual-radio 802.11n accesspoints. Four independent vertically polarized radiators provide omnidirectional coverage for meeting rooms, offices, departmental areas, or other enclosed spaces.

ANTENNA LOCATION

For best results, mount the HP JG696A at ceiling level near the center of the coverage area. A line-of-sight path between the antenna and active floor locations works best. Avoid mounting next to a column or vertical support that could create a shadow zone and reduce coverage to a portion of the room.

General Information
Manufacturer
Hewlett Packard Enterprise
Manufacturer Part Number
JG696A
Manufacturer Website Address
http://www.hpe.com
Brand Name
HPE
Product Name
Indoor Omnidirectional Dual Band 2.5/6dBi MIMO 4 Element Antenna
Product Type
Antenna
Technical Information
Directivity
Omni-directional
Frequency Band Type
  • UHF
  • SHF
  • Frequency
  • 2.40 GHz to 2.50 GHz
  • 5.15 GHz to 5.85 GHz
  • Antenna Gain
    6 dBi
    Impedance
    50 Ohm
    Polarization
  • Vertical
  • Linear
  • Cable Length
    2.75 ft
    Features
    MIMO Technology
    Interfaces/Ports
    Number of Connectors
    4
    Connector Type
    RP-SMA
    USB
    No
    Physical Characteristics
    Height
    1.7"
    Diameter
    8.6"
    Form Factor
    Ceiling Mount
    Weight (Approximate)
    1.32 lb
    Miscellaneous
    Application/Usage
    Wireless Data Network
    Package Contents
    • Indoor Omnidirectional Dual Band 2.5/6dBi MIMO 4 Element Antenna
    • Rubber Locking Gasket
    Compatibility

    HP MSM3xx/4xx Wireless Access Points

    Certifications & Standards
    IEEE 802.11n
