Highlights:
  • Rack Height: 4U
  • Processor Type: Xeon Gold
  • Standard Memory: 64 GB
  • Product Type: Server
Contact sales for pricing

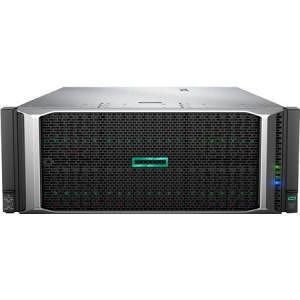

The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

The HPE ProLiant DL580 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, graphics intensive and general 4P data-intensive applications where the right performance is paramount.
General Information
Manufacturer
Hewlett Packard Enterprise
Manufacturer Part Number
869848-B21
Manufacturer Website Address
http://www.hpe.com
Brand Name
HPE
Product Line
ProLiant
Product Series
DL580 G10
Product Name
ProLiant DL580 Gen10 5120 2P 64GB-R P408i-p 8SFF 4x800W PS Entry Server
Product Type
Server
Processor & Chipset
Number of Processors Supported
4
Number of Processors Installed
2
Processor Manufacturer
Intel
Processor Type
Xeon Gold
Processor Model
5120
Processor Core
Tetradeca-core (14 Core)
Processor Speed
2.20 GHz
Memory
Standard Memory
64 GB
Memory Technology
DDR4 SDRAM
Number of Total Memory Slots
48
Number of Occupied Memory Slots
4
Storage
Total Hard Drive Capacity
No
Controllers
Controller Type
12Gb/s SAS
RAID Supported
Yes
I/O Expansions
Number of Internal 2.5" Bays
8
Hot Swappable Bays
Yes
Display & Graphics
Graphics Memory Capacity
Up to 16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
Software
Operating System
No
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Supported
    4
    Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    800 W
    Redundant Power Supply
    Yes
    Physical Characteristics
    Form Factor
    Rack
    Rack Height
    4U
    Height
    6.9"
    Width
    17.5"
    Depth
    29.6"
    Weight (Approximate)
    114 lb
    Miscellaneous
    Package Contents
    • ProLiant DL580 Gen10 5120 2P 64GB-R P408i-p 8SFF 4x800W PS Entry Server
    • Rail Kit with CMA
    • 6-foot IEC C-13/C-14 Jumper Cord
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • EU WEEE
  • Warranty
    Limited Warranty
    3 Year
