ABOUT

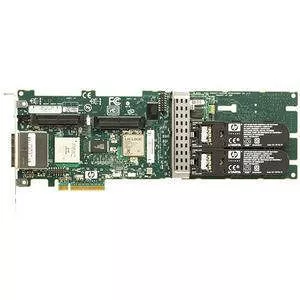

The HP Smart Array P800 is HP's first 16 port serial attached SCSI (SAS) RAID controller with PCI-Express (PCIe). It is the highest performing controller in the SAS portfolio and provides new levels of reliability for HP servers, through its support of the latest SCSI technology and advanced RAID capabilities. This controller ships standard with RAID 6 (ADG) and supports over 100 hard drives.
See More
SPECIFICATIONS
General Information
Manufacturer
HP - Ingram Certified Pre-Owned
Manufacturer Part Number
381513-B21-RF
Brand Name
HP - Ingram Certified Pre-Owned
Product Line
Smart Array
Product Series
P800
Product Name
Smart Array P800 16 Port SAS RAID Controller
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express x8
RAID Supported
Yes
RAID Levels
Number of Physical Drive Supported
108
Number of Logical Drive Supported
32
Interfaces/Ports
Total Number of SAS Ports
4
Number of SAS Ports (Internal)
2
Number of SAS Ports (External)
2
SAS Connector Details
2 SFF-8484
Physical Characteristics
Height
4.4"
Width
12.3"
Thickness
0.5"
Form Factor
Plug-in Card
Miscellaneous
Platform Supported
PC
Compatibility
- HP ProLiant DL320 G4
- HP ProLiant DL320 G4 SAS VPN Server
- HP ProLiant DL320 G5
- HP ProLiant DL320s
- HP ProLiant DL360 G5
- HP ProLiant DL360 G5 Base
- HP ProLiant DL360 G5 Entry
- HP ProLiant DL360 G5 Performance
- HP ProLiant DL365
- HP ProLiant DL365 Base
- HP ProLiant DL365 Entry
- HP ProLiant DL365 Performance
- HP ProLiant DL380 G5
- HP ProLiant DL380 G5 Base
- HP ProLiant DL380 G5 Entry
- HP ProLiant DL380 G5 High Performance
- HP ProLiant DL385 G2
- HP ProLiant DL385 G2 Base
- HP ProLiant DL385 G2 Entry
- HP ProLiant DL385 G2 High Performance
- HP ProLiant DL580 G4
- HP ProLiant DL580 G4 High Performance
- HP ProLiant DL585 G2
- HP ProLiant ML310 G4
- HP ProLiant ML350 G5
- HP ProLiant ML350 G5 Base
- HP ProLiant ML350 G5 Entry
- HP ProLiant ML370 G5
- HP ProLiant ML370 G5 Base
- HP ProLiant ML370 G5 Entry
- HP ProLiant ML370 G5 High Performance
- HP ProLiant ML370 G5 Performance
- HP ProLiant ML570 G4
- HP ProLiant ML570 G4 High Performance
Warranty
Limited Warranty
3 Year
