GIG-X570 UD-00
MPN: X570 UD

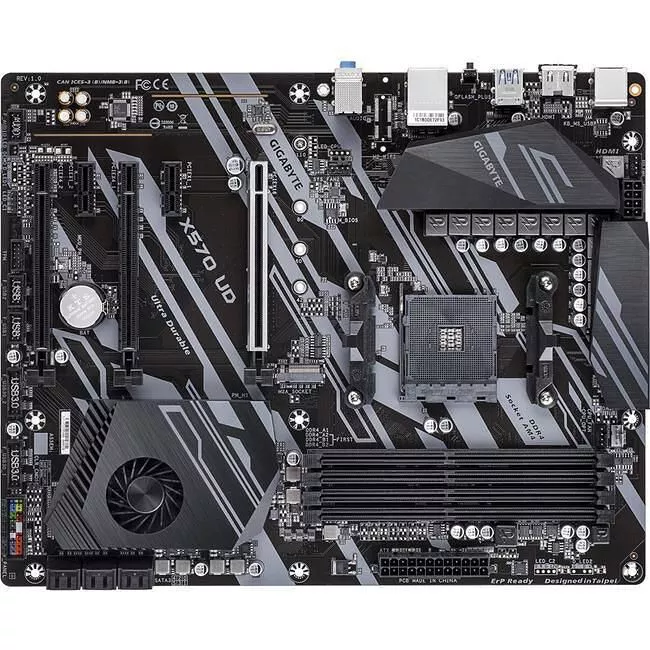

GIGABYTE X570 UD AM4 - ATX - X570 - DDR4 - 4xCROSSFIRE - PCIE4 - SATA3&USB3.2 - M.2 - A&GbE


Highlights
AMD X570 UD Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durableâ„¢ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0
  • Supports AMD 3rd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarge Heatsink
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • Supports RGB Light Strip in Full Colors
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Featured HDMI 2.0 support
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card

GET READY FOR AMD RYZENâ„¢ 3000-SERIES

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzenâ„¢ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 interfaces on select boards, refined audio,and high speed of Ethernet , to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzenâ„¢ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology

GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

PERFORMANCE

10+2 Phases Digital VRM Design with Lower RDS(on) MOSFET
Optimized for AMD 3000 series CPU


GIGABYTE X570 motherboards use a 10+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzenâ„¢ 3000-series CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Lower RDS(on) MOSFETs

  • Optimized gate charge to minimize switching losses.
  • Lower temperature, smaller size, better thermal characteristics.
Smart Chipset Fan Heatsink

Smart Fan

Provides 3 different operating modes to minimize noise and extend the fan's longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

High Durability

X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000 working hours.
