ABOUT

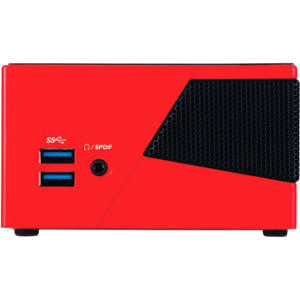

GIGABYTE BRIX Pro - Highly Compact, Highly Potent
The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel® Core™ i5 processor featuring Intel® Iris™ Pro graphics 5200. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design and video editing, the superior graphics performance of the BRIX Pro means it's also great for 3D gaming.
The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel® Core™ i5 processor featuring Intel® Iris™ Pro graphics 5200. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design and video editing, the superior graphics performance of the BRIX Pro means it's also great for 3D gaming.
See More
SPECIFICATIONS
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GB-BXI5-4570R
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
BRIX Pro
Product Model
GB-BXI5-4570R
Product Name
BRIX Pro GB-BXI5-4570R Desktop Computer
Product Type
Desktop Computer
Processor & Chipset
Number of Processors Supported
1
Number of Processors Installed
1
Processor Manufacturer
Intel
Processor Type
Core i5
Processor Model
i5-4570R
Processor Core
Quad-core (4 Core)
Processor Speed
2.70 GHz
Maximum Turbo Speed
3.20 GHz
Cache
4 MB
Direct Media Interface
5 GT/s
64-bit Processing
Yes
Hyper-Threading
No
vPro Technology
No
Memory
Standard Memory
0 Byte
Maximum Memory
16 GB
Memory Technology
DDR3L SDRAM
Memory Form Factor
SoDIMM
Number of Total Memory Slots
2
Storage
Total Hard Drive Capacity
0 Byte
Optical Drive Type
No
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
Iris Pro 5200
Graphics Memory Technology
DDR3L SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Ethernet Technology
Gigabit Ethernet
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11a/b/g/n/ac
Bluetooth
Yes
Bluetooth Standard
Bluetooth 4.0
I/O Expansions
Number of Total Expansion Slots
1
Number of Mini PCI Express Slots
1
Interfaces/Ports
Number of HDMI Outputs
1
HDMI
Yes
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Network (RJ-45)
Yes
Audio Line Out
Yes
Number of DisplayPort Outputs
1
DisplayPort
Yes
Number of mSATA Interfaces
1
Software
Operating System
No
Physical Characteristics
Color
Red
Form Factor
Mini PC
Height
2.4"
Width
4.4"
Depth
4.5"
Weight (Approximate)
1.70 lb
Miscellaneous
Features
Security Slot
