MPN: GA-Z97N-WIFI

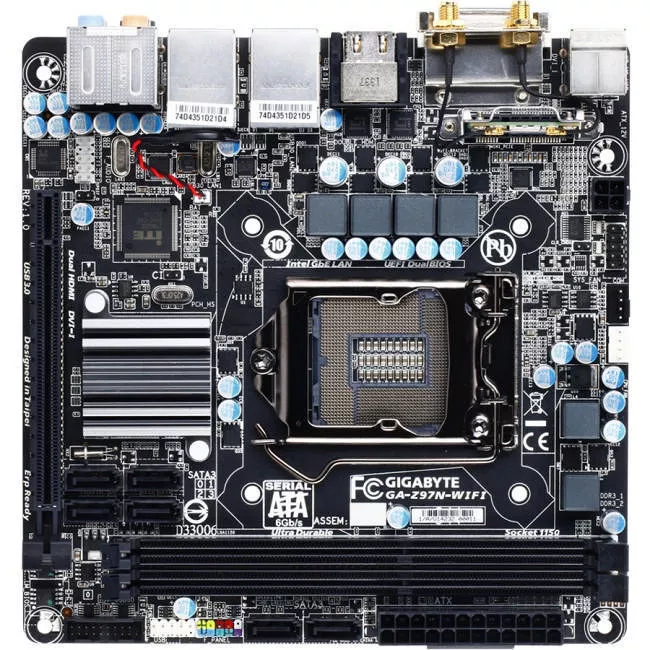

GIGABYTE GA-Z97N-WIFI Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150

Highlights

About

Specifications

GIGABYTE 9 Series Motherboards

GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.

Specifications

General Information

Manufacturer

GIGABYTE Technology, Inc

Manufacturer Part Number

GA-Z97N-WIFI

Manufacturer Website Address

http://www.gigabyte.us

Brand Name

Gigabyte

Product Line

Ultra Durable

Product Series

Product Model

GA-Z97N-WIFI (rev. 1.0)

Product Name

Ultra Durable Series 9 GA-Z97N-WIFI (rev. 1.0) Desktop Motherboard

Product Type

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer

Intel

Chipset Model

Z97 Express

Total Processor Supported

Processor Socket

Socket H3 LGA-1150

Processor Supported

Core i7

Core i5

Core i3

Pentium

Celeron

64-bit Processing

Yes

Memory

Number of Memory Slots

Memory Form Factor

DIMM

Maximum Memory Supported

16 GB

Memory Standard

DDR3-2933/PC3-23400 (O.C.)

DDR3-2800/PC3-22400 (O.C.)

DDR3-2666/PC3-21330 (O.C.)

DDR3-2600/PC3-20800 (O.C.)

DDR3-2500/PC3-20000 (O.C.)

DDR3-2400/PC3-19200 (O.C.)

DDR3-2200/PC3-17600 (O.C.)

DDR3-2133/PC3-17000 (O.C.)

DDR3-2000/PC3-16000 (O.C.)

DDR3-1866/PC3-15000 (O.C.)

DDR3-1800/PC3-14400 (O.C.)

DDR3-1600/PC3-12800

DDR3-1333/PC3-10600

DDR3-3000/PC3-24000 (O.C.)

Memory Technology

DDR3 SDRAM

Memory Speed Supported

3000 MHz

2933 MHz

2800 MHz

2666 MHz

2600 MHz

2500 MHz

2400 MHz

2200 MHz

2133 MHz

2000 MHz

1866 MHz

1800 MHz

1600 MHz

1333 MHz

I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

1+0

Video

Onboard Video

CPU Dependent Video

Graphics Controller Manufacturer

Intel

Graphics Controller Memory

1 GB

Graphics Memory Technology

DDR3 SDRAM

Graphics Memory Accessibility

Shared

Audio

Sound Controller Manufacturer

Realtek

Sound Controller Model

ALC892

Audio Channels

7.1

Network & Communication

Bluetooth

Yes

Gigabit Ethernet

Yes

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11a/b/g/n/ac

I/O Expansions

Number of Total Expansion Slots

PCI Express Standard

PCI Express 3.0

Total Number of PCI Express Slots

Number of PCI Express x16 Slots

Number of Mini PCI Express Slots

Interfaces/Ports

Total Number of USB Ports

Number of USB 2.0 Ports

Number of USB 3.0 Ports

Audio Line In

Yes

Audio Line Out

Yes

Microphone Port

Yes

S/PDIF

Yes

Number of S/PDIF Out Ports

VGA

Yes

HDMI

Yes

Number of HDMI Outputs

DVI

Yes

Number of DVI Outputs

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

PS/2 Port

Yes

Number of PS/2 Ports

Onboard Interfaces

Number of SATA Interfaces

Total Number of Onboard USB Ports

Number of Onboard USB 2.0 Ports

Number of Onboard USB 3.0 Ports

Onboard Serial Header

Yes

Onboard Audio Header

Yes

Onboard S/PDIF Header

Yes

Power Description

Power Supply Supported

ATX12V

Physical Characteristics

Form Factor

Mini ITX

Width

6.7"

Depth

6.7"

Warranty

Limited Warranty

3 Year
