Highlights:
  • Processor Socket: Socket LGA 2011-v3
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 64 GB
Contact sales for pricing
  • Supports New Intel® Core™ i7 Processor Extreme Edition
  • 4 Channel DDR4, 8 DIMMs
  • Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
  • 4-Way Graphics with Premium PCIe Lane
  • Dual M.2 Technology for SSD Drive and WIFI card
  • 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
  • Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
  • Independent Right and Left Audio Channel PCB Layers
  • LED lighting for the audio guard light path and the back panel LED
  • All Stainless Steel connectors on rear panel
  • High end quality audio capacitors
  • SATA Express support for up to 10 Gb/s data transfer
  • Long lifespan Durable Black™ Solid caps
  • APP Center including EasyTune™ and Cloud Station™ utilities
  • Thunderbolt™ Ready
  • GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
  • Safer design around screw mounting holes
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-X99-UD4
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable
Product Model
GA-X99-UD4
Product Name

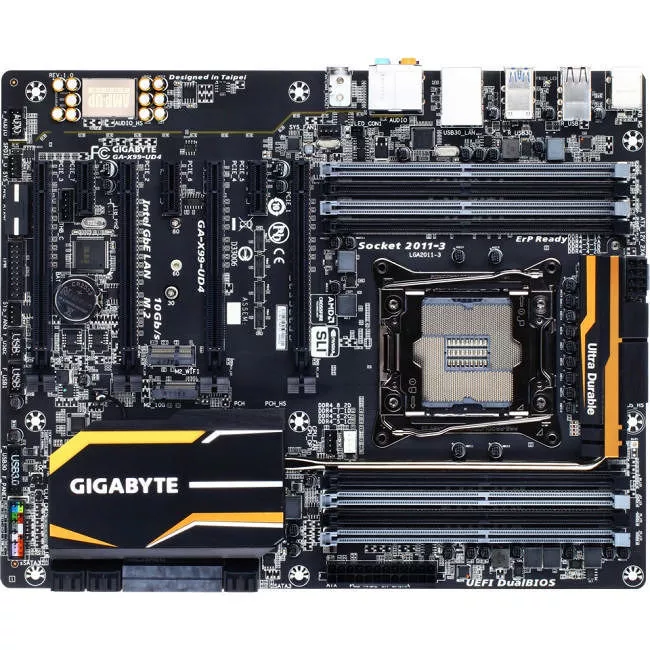

Ultra Durable GA-X99-UD4 (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Smart Response Technology
Processor Socket
Socket LGA 2011-v3
Processor Supported
Core i7 Extreme Edition
64-bit Processing
Yes
Memory
Number of Memory Slots
8
Memory Form Factor
DIMM
Maximum Memory
64 GB
Memory Standard
  • DDR4-3000/PC4-24000 (O.C.)
  • DDR4-2800/PC4-22400 (O.C.)
  • DDR4-2666/PC4-21300 (O.C.)
  • DDR4-2400/PC4-19200 (O.C.)
  • DDR4-2133/PC4-17000
  • Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 3 GHz (O.C.)
  • 2.80 GHz (O.C.)
  • 2.67 GHz (O.C.)
  • 2.40 GHz (O.C.)
  • 2.13 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
  • Video
    Onboard Video
    No
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC1150
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    7
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    7
    Number of PCI Express x1 Slots
    3
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    10
    Number of USB 2.0 Ports
    4
    Number of USB 3.0 Ports
    6
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    10
    Number of M.2 Interfaces
    1
    Number of SATA Express Interfaces
    1
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    2
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Onboard Thunderbolt Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • Ultra Durable GA-X99-UD4 (rev. 1.0) Desktop Motherboard
    • Norton Internet Security (OEM Version)
    • cFosSpeed
    Certifications & Standards
    • CE
    • FCC
    • BSMI
    • ACPI 5.0
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • China RoHS
  • ErP Ready
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
