About
Intel® Q87 Chipset
- Panel Driver Power Selectable
- Back Light Module Power Selectable
- Wide Range Voltage Input
- PCI Express x4 Slot
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-Q87TN-B
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-Q87TN
Product Name

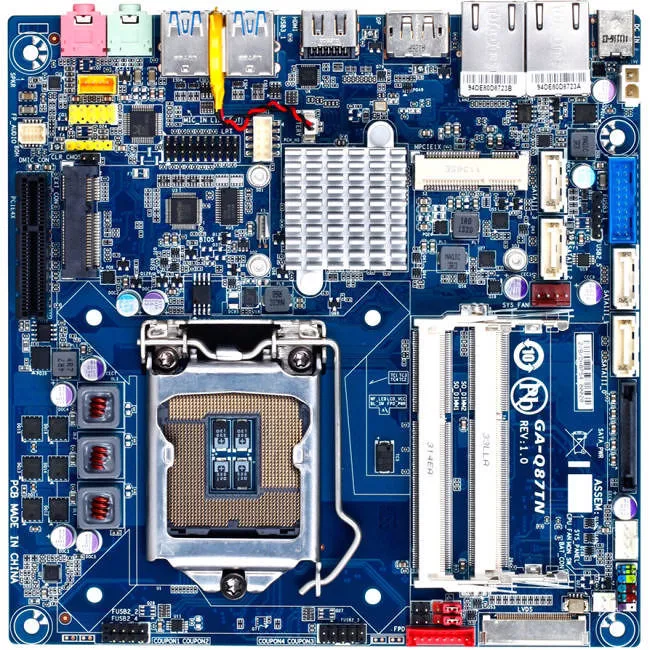

GA-Q87TN (rev. 1.0) Desktop Motherboard
Packaged Quantity
20
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Q87 Express
Total Processor Supported
1
Processor Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
1
Number of PCI Express x4 Slots
1
Number of Mini PCI Express Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Audio Line Out
Yes
Microphone Port
Yes
HDMI
Yes
Number of HDMI Outputs
1
DisplayPort
Yes
Number of DisplayPort Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
4
Number of mSATA Interfaces
1
Total Number of Onboard USB Ports
5
Number of Onboard USB 2.0 Ports
5
Onboard Parallel Header
Yes
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Form Factor
Mini ITX
Height
12"
Width
6.7"
Depth
6.7"
Weight (Approximate)
26.40 lb
Miscellaneous
Certifications & Standards
- ACPI 2.0a
Country of Origin
China
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
