Highlights:
  • Processor Socket: Socket H3 LGA-1150
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 32 GB
Contact sales for pricing

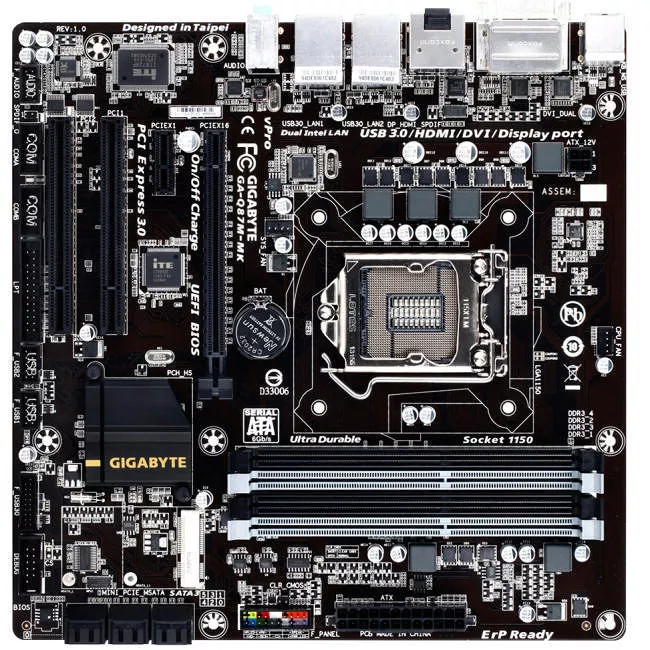

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-Q87M-MK
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable 4 Plus
Product Series
8
Product Model
GA-Q87M-MK
Product Name
Ultra Durable 4 Plus 8 Series GA-Q87M-MK (rev. 1.1) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
vPro Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
  • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    4
    Memory Form Factor
    DIMM
    Maximum Memory
    32 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.60 GHz
  • 1.33 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
  • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    1 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    5
    Number of PCI Slots
    2
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    2
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x16 Slots
    1
    Number of Mini PCI Express Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    4
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DisplayPort
    Yes
    Number of DisplayPort Outputs
    1
    DVI
    Yes
    Number of DVI Outputs
    2
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    2
    Onboard Parallel Header
    Yes
    Onboard Serial Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Height
    2.3"
    Width
    9.6"
    Depth
    9.6"
    Weight (Approximate)
    2.25 lb
    Miscellaneous
    Package Contents
    • Ultra Durable 4 Plus 8 Series GA-Q87M-MK (rev. 1.1) Desktop Motherboard
    • Bundle Software
    Certifications & Standards
    • ACPI 2.0a
    • CE
    • FCC
    • BSMI
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • China RoHS
  • ErP Ready
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
