GIGABYTE Ultra Durableâ„¢ 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.
About
GIGABYTE Ultra Durableâ„¢ 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-Q77M-D2H-B
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable 4 Classic
Product Model
GA-Q77M-D2H
Product Name

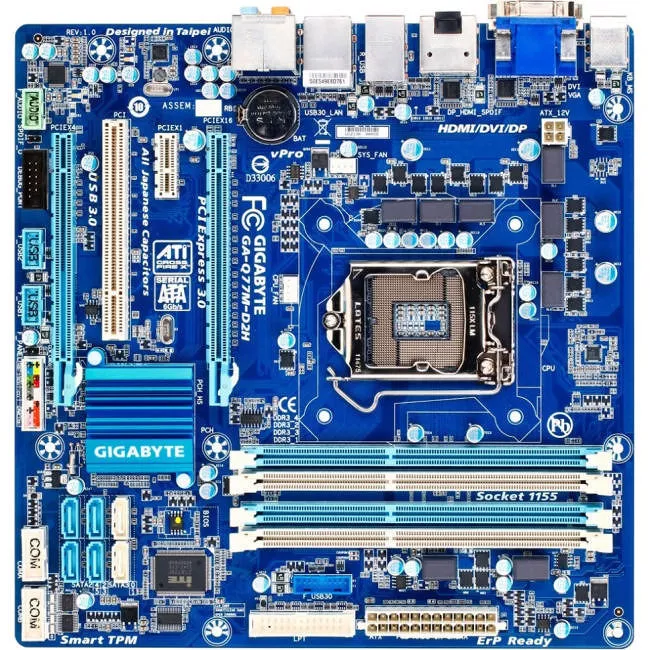

Ultra Durable 4 Classic GA-Q77M-D2H (rev. 1.0) Desktop Motherboard
Packaged Quantity
10
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Q77 Express
Total Processor Supported
1
Processor Technology
Processor Socket
Socket H2 LGA-1155
Processor Supported
64-bit Processing
Yes
Multi GPU Supported
CrossFireX
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
CPU Dependent Video
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
4
Number of PCI Slots
1
PCI Express Standard
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
2
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
S/PDIF
Yes
Number of S/PDIF Out Ports
1
VGA
Yes
HDMI
Yes
Number of HDMI Outputs
1
DisplayPort
Yes
Number of DisplayPort Outputs
1
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
6
Number of Onboard USB 2.0 Ports
4
Number of Onboard USB 3.0 Ports
2
Onboard Parallel Header
Yes
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
9.6"
Miscellaneous
Certifications & Standards
- FCC
- CE
- ACPI 2.0a
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
