ABOUT
Intel® Q170 Chipset
- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Intel® GbE LAN
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- DisplayPort , HDMI , DVI, D-SUB
- GIGABYTE UEFI BIOS Technology
- Support Intel vPro Techonogy
- Support Intel® Small Business Advantage
See More
SPECIFICATIONS
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-Q170M-D3H
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable
Product Model
GA-Q170M-D3H
Product Name

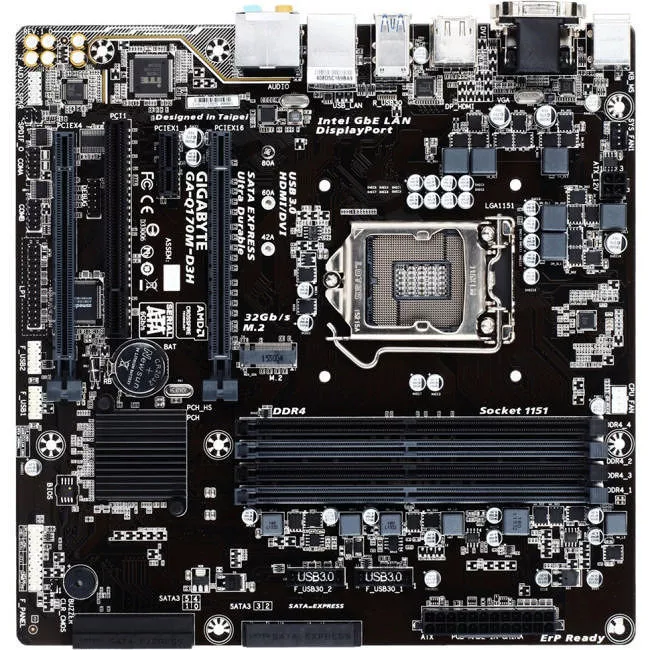

Ultra Durable GA-Q170M-D3H (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Memory
Number of Memory Slots
4
Memory Form Factor
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
2.13 GHz
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Audio
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
4
S/PDIF
Yes
VGA
Yes
HDMI
Yes
DisplayPort
Yes
DVI
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
3
Total Number of Onboard USB Ports
8
Number of Onboard USB 3.0 Ports
4
Onboard S/PDIF Header
Yes
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
9.6"
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
