Highlights:
  • Processor Socket: Socket BGA-1170
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 8 GB
  • Product Type: Desktop Motherboard
Contact sales for pricing
Intel® Celeron™ J1900 Processor

The Intel® Celeron™ J1900 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 22nm manufacturing process, the Intel® Celeron™ J1900 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel® Celeron™ J1900 boasts excellent performance including DX11 gaming on Intel® HD Graphics, plus a dedicated H.264 encoder for smooth HD video playback.
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-J1900N-D3V
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-J1900N-D3V
Product Name

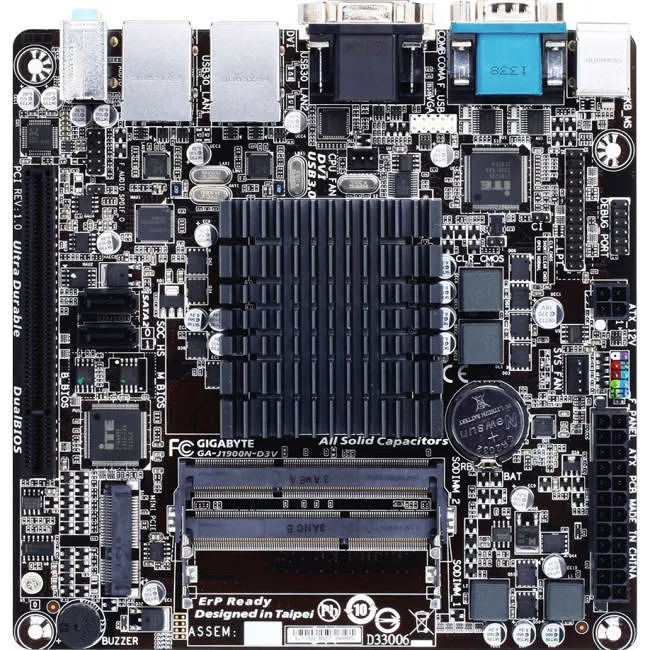

GA-J1900N-D3V (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Processor Socket
Socket BGA-1170
Processor Supported
Celeron
Integrated Processor
Integrated Processor Manufacturer
Intel
Integrated Processor Type
Celeron
Integrated Processor Model
J1900
Integrated Processor Speed
2 GHz
Integrated Processor Cache
2 MB
Integrated Processor Core
Quad-core (4 Core)
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory
8 GB
Memory Standard
DDR3-1333/PC3-10600
Memory Technology
DDR3 SDRAM
Memory Speed Supported
1.33 GHz
I/O Controller
Controller Type
Serial ATA/300
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
Intel
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
Number of PCI Slots
1
PCI Express Standard
PCI Express 2.0
Number of Mini PCI Express Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
2
Total Number of Onboard USB Ports
2
Number of Onboard USB 2.0 Ports
2
Onboard Parallel Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Warranty
Limited Warranty
3 Year
