GIGABYTE 9 Series Motherboards
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
About
GIGABYTE 9 Series Motherboards
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H97N
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable
Product Series
9
Product Model
GA-H97N
Product Name

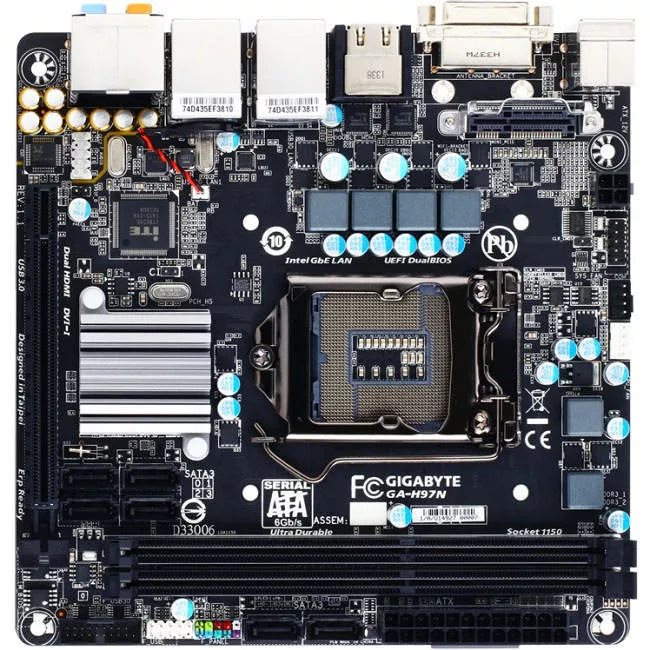

Ultra Durable 9 Series GA-H97N (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H97 Express
Total Processor Supported
1
Processor Technology
Smart Response Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
DIMM
Maximum Memory Supported
16 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Memory
512 MB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC892
Audio Channels
7.1
Network & Communication
Bluetooth
Yes
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
1
Number of PCI Express x16 Slots
1
Number of Mini PCI Express Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
4
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
S/PDIF
Yes
Number of S/PDIF Out Ports
1
HDMI
Yes
Number of HDMI Outputs
2
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
PS/2 Port
Yes
Number of PS/2 Ports
1
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
4
Number of Onboard USB 2.0 Ports
2
Number of Onboard USB 3.0 Ports
2
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Miscellaneous
Package Contents
- Ultra Durable 9 Series GA-H97N (rev. 1.0) Desktop Motherboard
- Bundle Software
Certifications & Standards
- ACPI 5.0
- CE
- FCC
- BSMI
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
