Highlights:
  • Processor Socket: Socket H3 LGA-1150
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 16 GB
Contact sales for pricing

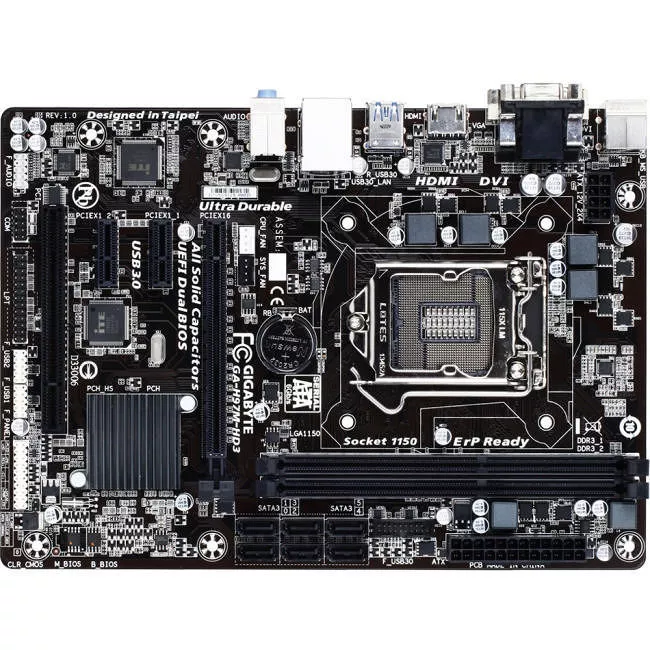

GIGABYTE 9 Series Motherboards

GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H97M-HD3
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-H97M-HD3
Product Name
GA-H97M-HD3 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
  • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory
    16 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.60 GHz
  • 1.33 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
  • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    1 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    4
    Number of PCI Slots
    1
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    4
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DVI
    Yes
    Number of DVI Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    2
    Onboard Parallel Header
    Yes
    Onboard Serial Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    6.9"
    Warranty
    Limited Warranty
    3 Year
