About
Intel® H87 Chipset
- Panel Driver Power Selectable
- Back Light Module Power Selectable
- Wide Range Voltage Input
- PCI Express x4 Slot
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H87TN-B
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-H87TN
Product Name

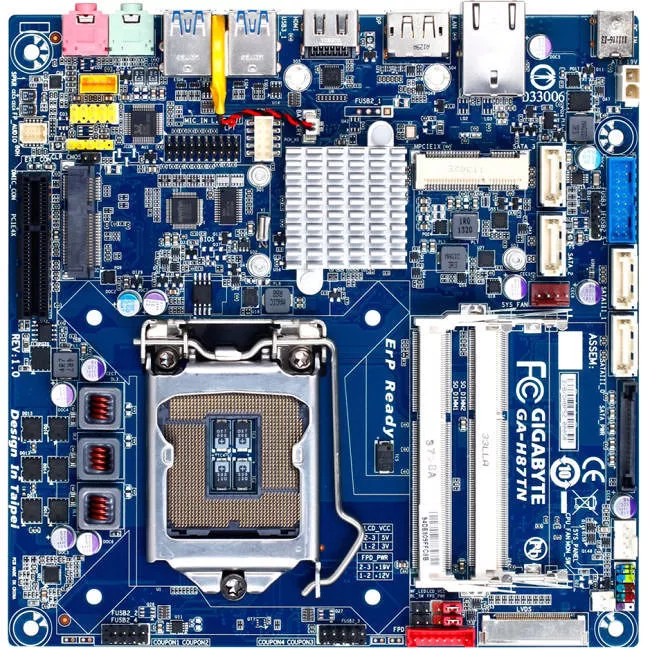

GA-H87TN (rev. 1.0) Desktop Motherboard
Packaged Quantity
20
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H87 Express
Total Processor Supported
1
Processor Technology
Quick Sync Video Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
CPU Dependent Video
Audio
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
2
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
1
Number of PCI Express x4 Slots
1
Number of Mini PCI Express Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Audio Line Out
Yes
Microphone Port
Yes
HDMI
Yes
Number of HDMI Outputs
1
DisplayPort
Yes
Number of DisplayPort Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Onboard Interfaces
Number of SATA Interfaces
4
Number of mSATA Interfaces
1
Total Number of Onboard USB Ports
5
Number of Onboard USB 2.0 Ports
5
Onboard Parallel Header
Yes
Onboard Serial Header
Yes
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Form Factor
Mini ITX
Height
12"
Width
6.7"
Depth
6.7"
Weight (Approximate)
26.40 lb
Miscellaneous
Certifications & Standards
- ACPI 2.0a
- CE
- FCC
- BSMI
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
