Highlights:
  • Processor Socket: Socket H3 LGA-1150
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 16 GB
Contact sales for pricing

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H81M-D3V
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable 4 Plus
Product Series
8
Product Model
GA-H81M-D3V
Product Name

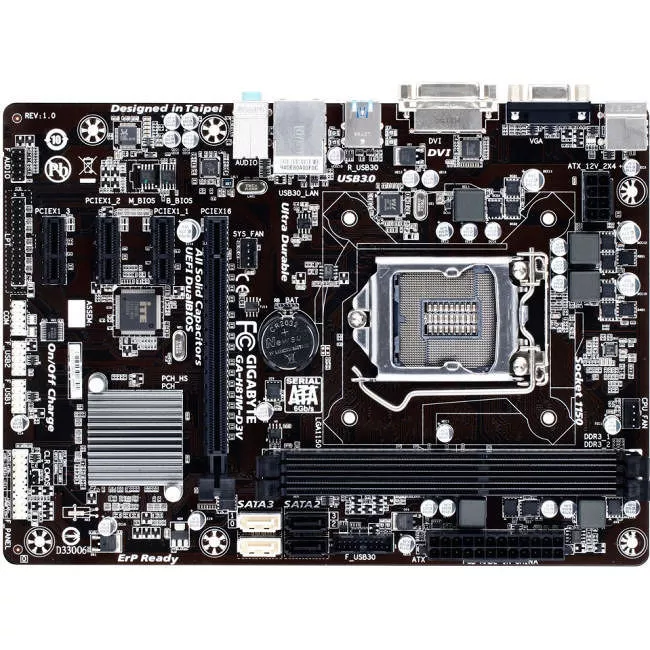

Ultra Durable 4 Plus 8 GA-H81M-D3V (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
  • Xeon
  • Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory
    16 GB
    Memory Standard
  • DDR3-1666/PC3-13400
  • DDR3-1333/PC3L-10600
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.67 GHz
  • 1.33 GHz
  • I/O Controller
    Controller Type
  • Serial ATA/600
  • Serial ATA/300
  • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    4
    Total Number of PCI Express Slots
    4
    Number of PCI Express x1 Slots
    3
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.0 Ports
    4
    VGA
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 3.0 Ports
    2
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    6.9"
    Miscellaneous
    Package Contents
    • Ultra Durable 4 Plus 8 GA-H81M-D3V (rev. 1.0) Desktop Motherboard
    • Bundle Software:
      • Norton Internet Security (OEM version)
    Environmentally Friendly
    Yes
    Environmental Certification
  • China RoHS
  • WEEE
  • ErP Ready
  • Warranty
    Limited Warranty
    3 Year
