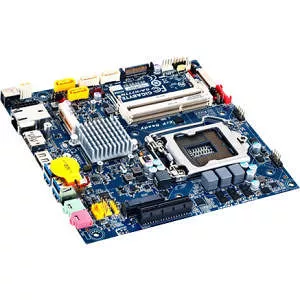

GIGABYTE GA-H77TN Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155

MPN # GA-H77TN
Highlights:
  • Processor Socket: Socket H2 LGA-1155
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 8 GB
Contact sales for pricing
GIGABYTE Thin Mini-ITX Motherboards

GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today's All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.

General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H77TN
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-H77TN
Product Name
GA-H77TN (rev. 1.1) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Quick Sync Video Technology
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Core i5
  • Core i7
  • Core i3
  • Pentium
  • Celeron
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    SoDIMM
    Maximum Memory
    8 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1600/PC3-12800
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Memory Technology
    DDR3 SDRAM
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    2
    PCI Express Standard
    PCI Express 3.0
    Total Number of PCI Express Slots
    2
    Number of PCI Express x4 Slots
    1
    Number of Mini PCI Express Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Audio Line Out
    Yes
    Microphone Port
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DisplayPort
    Yes
    Number of DisplayPort Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of mSATA Interfaces
    1
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
