About
Specifications
GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.
About
GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-H61M-S2PV
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable 4 Classic
Product Series
6
Product Model
GA-H61M-S2PV
Product Name

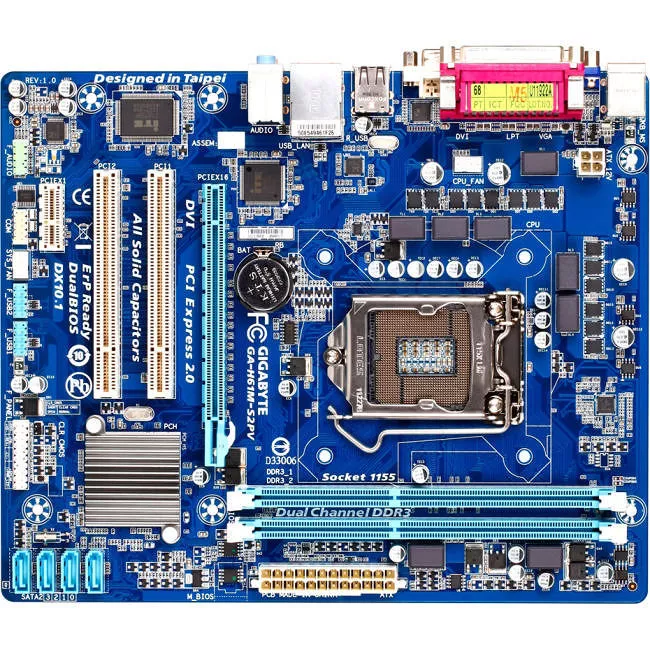

Ultra Durable 4 Classic 6-series GA-H61M-S2PV Desktop Motherboard
Packing
Box
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H61 Express
Total Processor Supported
1
Processor Technology
Processor Socket
Socket H2 LGA-1155
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
DIMM
Maximum Memory Supported
16 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/300
RAID Supported
No
Video
Onboard Video
CPU Dependent Video
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
4
Number of PCI Slots
2
PCI Express Standard
PCI Express 2.0
Total Number of PCI Express Slots
2
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Parallel Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Number of Onboard USB 2.0 Ports
4
Onboard Serial Header
Yes
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Power Description
Power Supply Supported
EPS12V
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
7.9"
Miscellaneous
Package Contents
- Ultra Durable 4 Classic 6-series GA-H61M-S2PV Desktop Motherboard
- Motherboard Driver Disk
- User's Manual
- 2 x SATA Cables
- I/O Shield
Certifications & Standards
- ErP Ready
- FCC
- CE
Environmentally Friendly
Yes
Environmental Compliance
Warranty
Limited Warranty
3 Year
