GIG-GA-H270N-WIFI-00
MPN: GA-H270N-WIFI

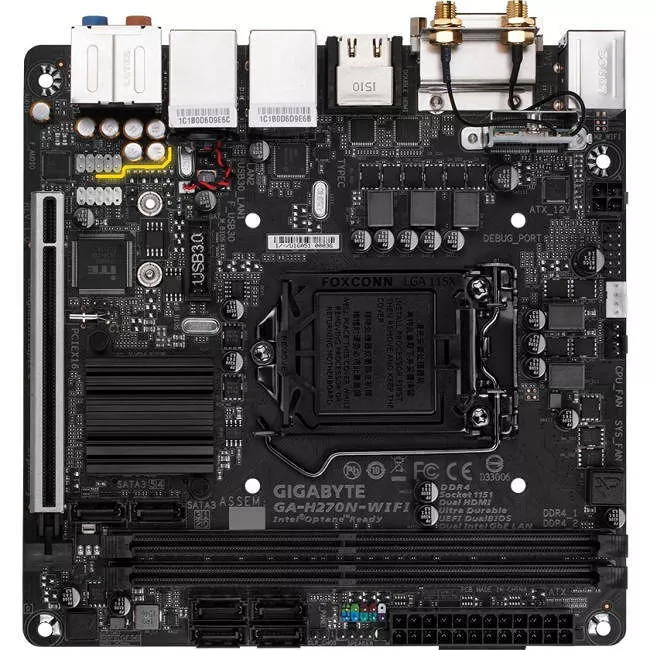

GIGABYTE GA-H270N-WIFI Desktop Motherboard - Intel H270 - Socket LGA-1151 - mITX


Highlights
  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® USB 3.1 Gen 1 with USB Type-C™
  • Intel® Optane™ Memory Ready
  • Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  • ALC1220 120dB SNR HD Audio with Smart Headphone Amp
  • 802.11ac Dual Band 867Mbps wireless supports MU-MIMO and BT4.2
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • Ultra Durable™ Metal Shielding over PCIe Slots
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including Cloud Station™ Utility

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
  • Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Faster and Better Coverage with Intel® Dual Band 802.11ac WIFI+BT4.2 Module

The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.

Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Dual Intel® Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Immersive VR Gaming Experience

  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp

ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 108dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
