GIG-GA-H110TN-GSM PLUS-00
MPN: GA-H110TN-GSM PLUS

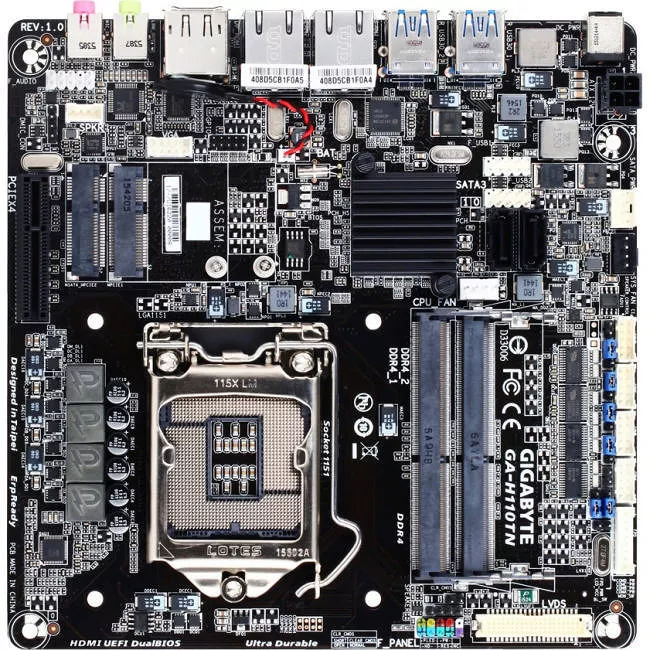

GIGABYTE GA-H110TN-GSM PLUS Desktop Motherboard - 1x Socket H4 LGA-1151 - Intel H110 - 2x DDR4 - Mini ITX

Highlights
Processor Socket:
Socket H4 LGA-1151
Total Processor Supported:
1
Memory Technology:
DDR4 SDRAM
Maximum Memory:
32 GB
Intel® H110 Chipset
  • Supports 6th Generation Intel® Coreâ„¢ Processor
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
  • Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
  • Mini-PCIe Dual Purpose Slot for mSATA SSD Support
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 1.4 Ports & D-sub Header for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Dual Intel® GbE LAN for WOL and PXE Support
  • Features 4 USB 3.0 and 4 USB 2.0 Ports
  • GIGABYTE UEFI DualBIOSâ„¢ Technology
  • Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
