About
Specifications
Intel® NM70 Chipset
- GIGABYTE Dual UEFI BIOS
- All new design of Ultra Durable 4 classic
- Industry's Leading All Solid Capacitor Design
- Dual LAN for networking flexibility
- HDMI interface for smoother HD video playback
- GIGABYTE On/Off Chargeâ„¢ for USB devices
About
Intel® NM70 Chipset
- GIGABYTE Dual UEFI BIOS
- All new design of Ultra Durable 4 classic
- Industry's Leading All Solid Capacitor Design
- Dual LAN for networking flexibility
- HDMI interface for smoother HD video playback
- GIGABYTE On/Off Chargeâ„¢ for USB devices
Specifications
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-C1037UN-B
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable 4 Classic
Product Model
GA-C1037UN
Product Name

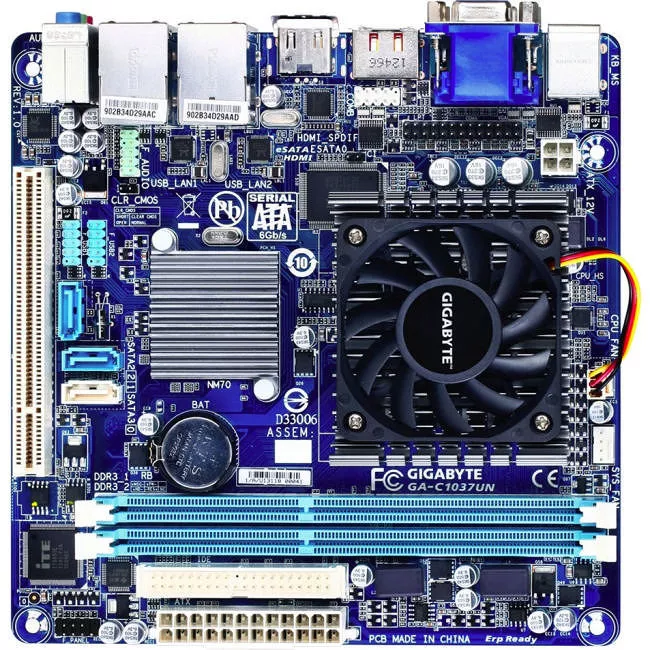

Ultra Durable 4 Classic GA-C1037UN (rev. 1.0) Desktop Motherboard
Packaged Quantity
10
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
NM70 Express
Total Processor Supported
1
Processor Socket
Socket BGA-1023
64-bit Processing
Yes
Integrated Processor
Integrated Processor Manufacturer
Intel
Integrated Processor Type
Celeron
Integrated Processor Model
1037U
Integrated Processor Speed
1.80 GHz
Integrated Processor Cache
2 MB
Integrated Processor Core
Dual-core (2 Core)
Memory
Number of Memory Slots
2
Memory Form Factor
DIMM
Maximum Memory Supported
16 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Memory
1 GB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
1
Number of PCI Slots
1
Interfaces/Ports
eSATA
Yes
Number of eSATA Ports
1
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
HDMI
Yes
Number of HDMI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
3
Total Number of Onboard USB Ports
4
Number of Onboard USB 2.0 Ports
4
Onboard Parallel Header
Yes
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Miscellaneous
Certifications & Standards
- CE
- FCC
- BSMI
- ACPI 5.0
Country of Origin
China
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
