MPN: GA-970A-D3P

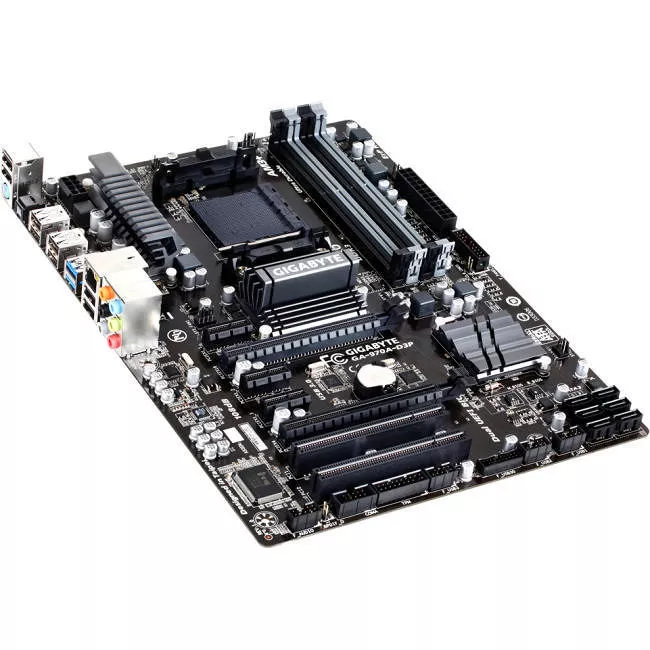

GIGABYTE GA-970A-D3P Ultra Durable 4 Classic Desktop Motherboard - AMD 970 Chipset - Socket AM3+

Highlights

About

Specifications

Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
GIGABYTE Ultra Durable™ 4 Classic Technology
GIGABYTE Digital Power Engine
GIGABYTE UEFI DualBIOS™
2-way CrossFire™ Support
VIA 2021 with High Quality 108dB SNR HD audio
GIGABYTE On/Off Charge™ for USB devices
4 USB 3.0 ports with GIGABYTE 3X USB power
6 SATA3 ports with RAID support
GbE LAN with high ESD Protection

Specifications

General Information

Manufacturer

GIGABYTE Technology, Inc

Manufacturer Part Number

GA-970A-D3P

Manufacturer Website Address

http://www.gigabyte.us

Brand Name

Gigabyte

Product Line

Ultra Durable 4 Classic

Product Model

GA-970A-D3P

Product Name

Ultra Durable 4 Classic GA-970A-D3P (rev. 1.0) Desktop Motherboard

Product Type

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer

AMD

Chipset Model

970

Total Processor Supported

Processor Socket

Socket AM3+

Processor Supported

Opteron

Athlon

Phenom

Sempron

HyperTransport Speed (MT/s)

4800

64-bit Processing

Yes

Multi GPU Supported

CrossFireX

Memory

Number of Memory Slots

Memory Form Factor

DIMM

Maximum Memory Supported

32 GB

Memory Standard

DDR3-2000/PC3-16000 (O.C.)

DDR3-1866/PC3-15000

DDR3-1600/PC3-12800

DDR3-1333/PC3-10600

DDR3-1066/PC3-8500

Memory Technology

DDR3 SDRAM

Memory Speed Supported

2000 MHz

1866 MHz

1600 MHz

1333 MHz

1066 MHz

I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

1+0

Audio

Sound Controller Manufacturer

VIA

Sound Controller Model

VT2021

Audio Channels

7.1

Network & Communication

Gigabit Ethernet

Yes

I/O Expansions

Number of Total Expansion Slots

Number of PCI Slots

PCI Express Standard

PCI Express 2.0

Total Number of PCI Express Slots

Number of PCI Express x1 Slots

Number of PCI Express x16 Slots

Interfaces/Ports

Total Number of USB Ports

Number of USB 2.0 Ports

Number of USB 3.0 Ports

Audio Line In

Yes

Audio Line Out

Yes

Microphone Port

Yes

S/PDIF

Yes

Number of S/PDIF Out Ports

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

PS/2 Port

Yes

Number of PS/2 Ports

Onboard Interfaces

Number of SATA Interfaces

Total Number of Onboard USB Ports

Number of Onboard USB 2.0 Ports

Number of Onboard USB 3.0 Ports

Onboard Serial Header

Yes

Onboard Audio Header

Yes

Onboard S/PDIF Header

Yes

Power Description

Power Supply Supported

ATX12V

Physical Characteristics

Form Factor

ATX

Width

12"

Depth

8.8"

Weight (Approximate)

2.80 lb

Miscellaneous

Package Contents

Ultra Durable 4 Classic GA-970A-D3P (rev. 1.0) Desktop Motherboard
Bundle Software

Certifications & Standards

CE
FCC
BSMI
ACPI 2.0a

Environmentally Friendly

Yes

Energy Efficiency Compliance

Energy-related Products Directive Ready (ErP Ready)

Environmental Compliance

China Restriction of Hazardous Substances (China RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
