Intel® Xeon® Processor E3-1200 V3 Product Family
Still based on the 22nm tri-gate lithography, this new generation of Xeon processors is built on Intel's latest microarchitecture and brings up to 15% computing power improvements and increased L3 cache across the line.
In addition, this new generation will also bring to the Xeon E3 family the support of 1600MHz ECC memory, Intel Trusted Execution and Virtualization technologies, as well as AVX 2.0 and TSX instructions.
Last but not least, the Xeon E3-1200 V3 processors will include the latest Intel integrated graphics, which will bring the support of OGL3.2+, DirectX 11.1, and higher frequencies.
See More
SPECIFICATIONS
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-6LISL
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
GA-6LISL
Product Name

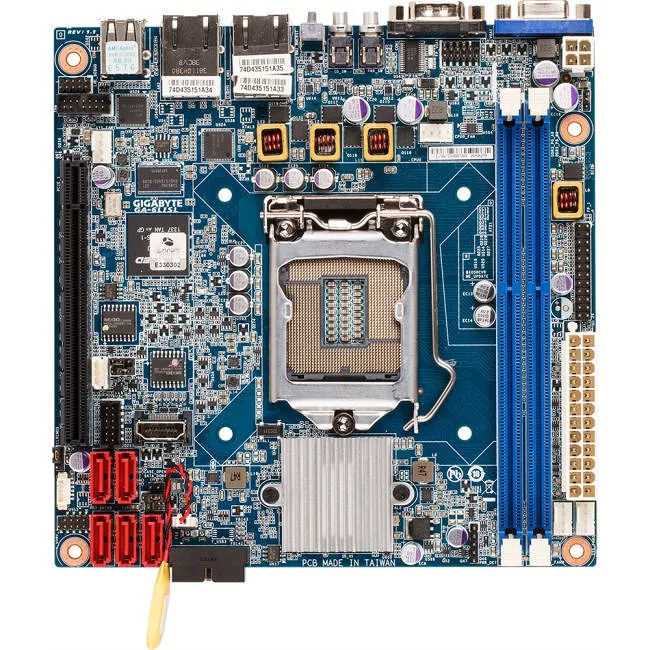

GA-6LISL (rev. 1.1) Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Memory Form Factor
Maximum Memory
16 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Graphics Memory Technology
DDR3 SDRAM
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
1
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
5
Total Number of Onboard USB Ports
2
Number of Onboard USB 2.0 Ports
1
Number of Onboard USB 3.0 Ports
1
Onboard LEDs Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
Country of Origin
Taiwan
Warranty
Limited Warranty
3 Year
