GIG-G291-280-00
MPN: G291-280

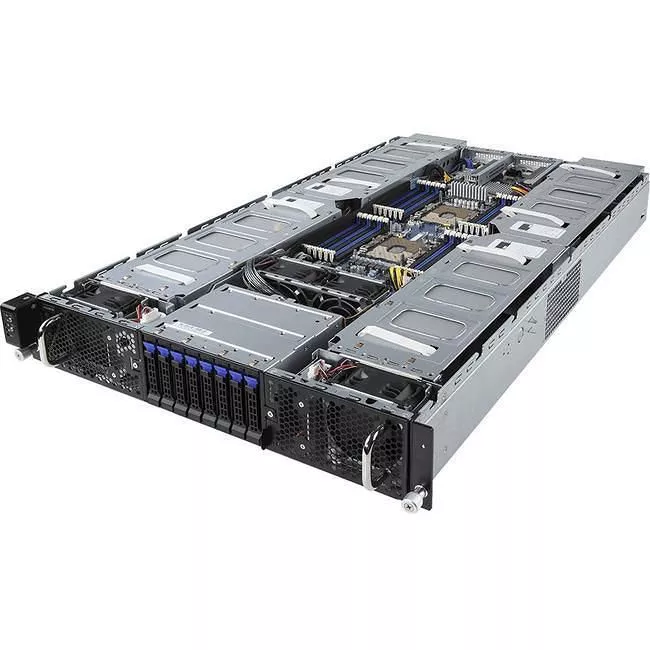

GIGABYTE G291-280 2U Rackmount Barebone - 2x Socket P LGA-3647 - 8x GPU - Intel C621 Chipset

Highlights
  • Supports up to 8 x double slot GPU cards
  • NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
  • Intel® Xeon® Processor Scalable Family
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • 2 x 10Gb/s BASE-T LAN ports
  • 1 x Dedicated management port
  • 8 x 2.5 hot-swappable HDD/SSD bays
  • 8 x PCIe Gen3 expansion slots for GPUs
  • 2 x PCIe x16 Half-length low-profile slots for add-on cards
  • Aspeed® AST2500 remote management controller
  • Dual 2200W 80 PLUS Platinum redundant/hot-swap power supply
  • Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products

Intel® Xeon® Scalable Processors

Extend Your Scale

This Intel Xeon Scalable product family provides a wealth of new options in scalability - across compute, network and storage - to deliver solutions for a range of applications.

The GIGABYTE SERVER system design and engineering expertise has been applied to the Intel Xeon Scalable series to meet the increasingly diverse requirements of the industry, from entry-level HPC to large scale clusters.

CPU Key Features

Compute
Up to 28 cores

Memory
6 channels

I/O
48 PCIe lanes

Storage
Intel Optaneâ„¢ supported

Network
Intel Omni-Path supported

The Intel Xeon Scalable platform brings improved features and functionality at the host and fabric level. These enable performance improvements natively on chip and for future extensibility through compute, network and storage peripherals.

Memory Optimization

  • Memory speed of up to 2666MHz
  • Up to 12 DIMMs per socket

Storage

  • Built in support for VROC
  • Intel Optane supported

Networking

  • Intel Omni-Path supported

Increased Memory Performance

  • The CPU architecture allows for up to 6 memory channels per socket and a bandwidth of up to 2666MHz.
  • The architecture is future-ready with the potential to support Apache Pass DIMM.
  • Memory capacity benefits with up to available 12 DIMMs per socket, which represents a 50% generation-on-generation increase.

Innovative Storage, Security and Networking

Storage

VROC

  • Innovative storage options through Intel Optaneâ„¢ low-latency, non-volatile design.
  • NVMe SKU systems ship with a Virtual Raid-On-CPU (VROC) module as standard to enable software raid on connected U.2 SSDs
  • Support for SATA-DOM is available to allow for standalone boot and diagnostics direct through SATA connections on the board.

Security

  • Integrated QAT for improved compression and security with software. On the hardware side, extra encryption on-board is enabled by TPMs available from GIGABYTE.

Networking

  • Fully compatible with Mellanox networking products.
  • Improved networking through Omni-Path interconnect fabric as a CPU-integrated or standalone device.

High Density HPC

Supports 8 x Computing Cards

Able to support up to 8 double slot GPGPU or co-processor cards, the G291 enables world-leading HPC within a 2U chassis. The G291 is ideal for accelerating development of AI, deep learning, real time analytics, programs in scientific simulation and modeling, engineering, visualization & rendering, data mining, and much more.
