GIG-B450 I AORUS PRO WIFI-00
MPN: B450 I AORUS PRO WIFI

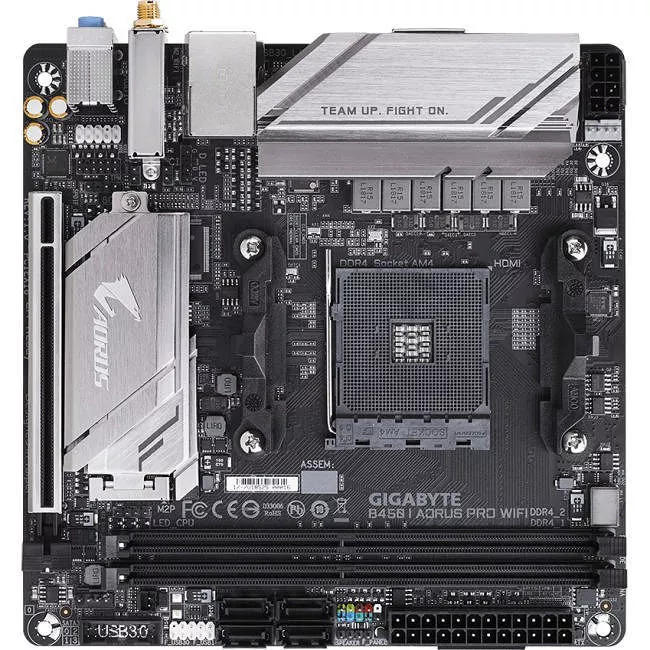

GIGABYTE B450 I AORUS PRO WIFI Ultra Durable Desktop Motherboard - AMD Chipset - Socket AM4

Highlights

AMD B450 AORUS Motherboard with 4+2 Phase IR Digital PWM, Intel® Dual Band 802.11ac Wave2 WIFI, M.2 with Thermal Guard, ALC1220-VB Audio, Intel® GbE LAN with cFosSpeed, CEC 2019 ready

  • Supports AMD 2nd Generation Ryzenâ„¢/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Generation Ryzenâ„¢ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Dual Band 802.11ac Wave2 WIFI & BT 5
  • DisplayPort, HDMI2 Ports for Multiple Display
  • Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with High-end Audio Capacitors
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
  • CEC 2019 Ready, Save Power with a Single Click

AMD introduces the latest Ryzenâ„¢ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzenâ„¢ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzenâ„¢ 2000 series processors.

AMD StoreMI technology

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

AORUS PERFORMANCE

4+2 Digital Power Design

IR Digital PWM Provider for High Performance Power IC solutions

AORUS B450 I AORUS PRO WIFI uses an all IR digital CPU power design which includes both digital PWM Controllers and Power Stage controllers, capable of providing at least 50A of power. These 100% digital controllers and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 2nd Gen AMD Ryzenâ„¢ processors.

4 Phases Vcore, 2 Phases SOC (Memory Controller) Digital Power

  • 50A for both each Vcore phase and each SOC phase
  • Server level reliability
  • High current capacity
  • Lower temperature
NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
