Highlights:
  • Form Factor: Mid-Tower
  • Processor: 1x Intel Xeon W processor
  • Drive Bays: 2x 5.25" External, 4x 2.5" Internal, 2x 2.5"/3.5" Internal
  • Supports up to 4x Double-Wide cards
Contact sales for pricing

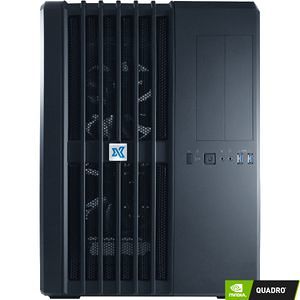

The Valence VWS-1735800-NQR is a mid-tower supporting 1x Intel Xeon W processor, a maximum of 512 GB DDR4 memory, and up to 4x NVIDIA Quadro RTX GPUs.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 2066
Processor Type
  • Xeon
Processor Supported
  • W-21XX
Chipset Manufacturer
Intel
Chipset Model
C422
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes, Intel Rapid Storage Technology
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 2x PCI-E 3.0 x16 slots (Single at x16 or dual at x8/x8)
  • 1x PCI-E 3.0 x4 slot
Drive Bays
Internal
  • 2x 3.5"/2.5" combo drive bays
  • 4x 2.5" drive bays
External
2x 5.25" drive bays
Interfaces/Ports
Number of USB 3.1 Ports
  • 6x USB 3.1 Gen 1 (4x rear, 2x mid-board)
  • 4x USB 3.1 Gen 2 (1x header, 2x rear (Type A and Type C)
Number of USB 2.0 Ports
  • 6x USB 2.0 (4x rear, 2x mid-board)
Number of SATA Interfaces
6
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
18.2"
Depth
26.5"
