Highlights:
  • Form Factor: Tower
  • Processor: 1x Intel Socket LGA 1151 processor
  • Drive Bays: 4x Fixed 3.5", 2x 5.25" and 1x 3.5" Peripheral
  • Supports up to 1x Double-Wide card
Contact sales for pricing

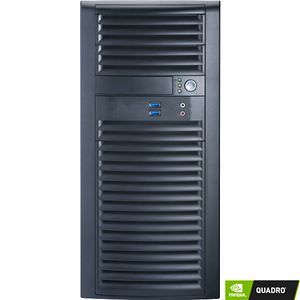

The Valence VWS-104641056-NQR is a mid-tower supporting 1x Intel Xeon E, Core i9/i7/i5/i3, Pentium, or Celeron processor, a maximum of 64 GB DDR4 memory, and up to 1x NVIDIA Quadro RTX GPU.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Xeon
  • Core
  • Pentium
  • Celeron
Processor Supported
  • E-21XX
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
Chipset Manufacturer
Intel
Chipset Model
C246
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
4
Controllers
Controller Type
SATA3
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (NA/x16 or x8/x8)
  • 1x PCI-E 3.0 x4 slot
  • 1x PCI-E 3.0 x1 slot
  • 1x PCI 32bit 5V slot
  • 1x PCI-E 3.0 x4 M.2 (2260/2280/22110)
Drive Bays
Internal
  • 4x 3.5" fixed drive bays
External
  • 2x 5.25" peripheral drive bays
  • 1x 3.25" peripheral drive bays
  • Interfaces/Ports
    Number of USB 3.1 Ports
    • 2x (1x Type A, 1x Type C)
    • 4 (2x front, 2x rear)
    Number of USB 2.0 Ports
    • 2x (front)
    Number of SATA Interfaces
    8
    LAN
    • 2x RJ45 1000BASE-T Ethernet LAN Ports
    Power Description
    Number of Power Supplies
    1
    Redundant Power Supplies
    No
    Physical Characteristics
    Color
    Black
    Form Factor
    Tower
    Height
    16.7"
    Width
    7.6"
    Depth
    20.68"
